GPS Receiver

GPS Receiver

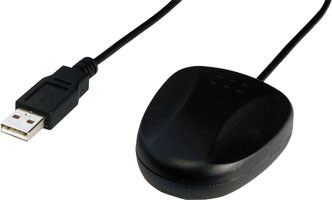

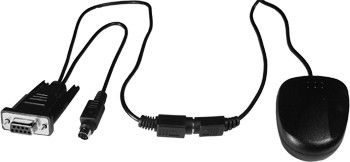

● CFA compliant
● Within SiRF Star III/LP low power All-in-View high performance 20-parallel channels
● Support Standard NMEA 0183 command: GGA, GSA, GSV, RMC, GLL, VTG
● SingleSat updates in reduced visibility
● Superior urban canyon performance
● FoliageLock for weak signal tracking
● Optional external antenna
● Built-in Antenna for high sensitivity to satellite signal
● LED indicator for GPS fix or not fix

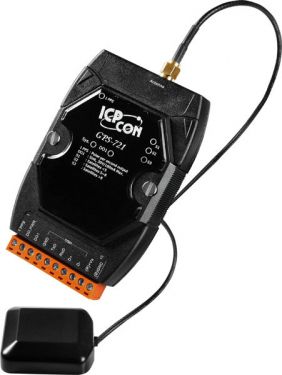

Remote GPS Receiver Module with 1 DO and 1 PPS outputs

● Support 66-channel GPS and NMEM v0183 v3.01
● RS-485 supports DCON protocol
● RS-232 supports NEMA v0183 v3.01 format or DCON protocol
● Built-in 1 channel DO, 1 channel PPS(1 pulse per second), 1 RS-485 port, 1 RS-232 port
● PPS: 100 ms pulse output/sec. for precise timekeeping and time measurement
● 10 ~ 30V DC (Power reverse polarity protection)
● With various system LED indicators
● DIN-Rail Design

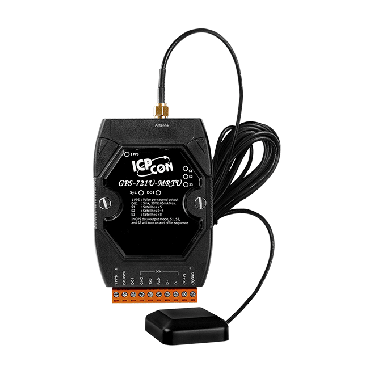

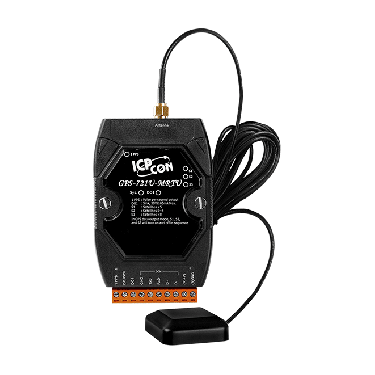

● Support 56-channel GPS and NMEA v0183 (Baudrate 9600 bps)
● RS-485 supports DCON protocol and Modbus RTU
● RS-232 supports NMEA v0183 format, DCON or Modbus RTU protocol
● Built-in 1 channel DO, 1 channel PPS(1 pulse per second), 1 RS-485 port, 1 RS-232 port
● PPS: 100 ms pulse output/sec for precise timekeeping and time measurement
● 10 ~ 30 VDC – (Power reverse polarity protection)
● With various system LED indicators
● DIN Rail design
● includes a GPS Active External Antenna (ANT-115-03)

GPS Receiver

GPS Receiver

GPS Receiver Module with 2 DO and 1 PPS output, includs ANT-115-03

● Support PACs and Remote I/O expansion units of ICP DAS
● Support 32-channel GPS and NMEA v0183 v3.01(Baudrate 9600 bps)
● RS-232 supports NMEA v0183 v3.01 format or DCON protocol
● Built-in 2-channel DO, 1-channel PPS(1 pulse per second), 1 RS-232 port
● PPS: 100 ms pulse output/sec for precise timekeeping and time measurement
● With various system LED indicator
