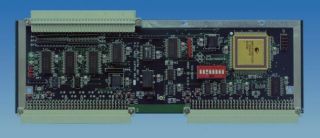

ICS Register Basted Interface Card VXI-5524
Levertijd:
3~4 weken
SKU
VXI-5524
VXI-5524 Register Based Interface Card
● Mates with user's PCB to form a C or D-size module. The quickest way to make a VXI module.
● A complete VXI-1 Rev 1.4 and VXI-2 compliant register-based interface. High speed VXIbus interface that meets the latest VXIbus specifications.
● User interface includes 48 I/O signals, a VXI expansion bus, TTL Triggers and VXI interrupt capability. Supports virtually any kind of user circuit or function.
● User configureable model number, manufacturer ID, version and serial numbers. Identifies the finished module as your product.
● Two companion component boards available for prototype modules. No need to layout prototype boards.
● Companion hardware kits available for building 1, 2 or 3-slot wide modules. Complete hardware support for all width C-size modules.
ICS Register Basted Interface Card VXI-5524 is a low-cost VXI Interface for connecting virtually any kind of a circuit to the VXIbus. It is a register-based VXI Interface with enough on-board logic for most applications.
ICS Register Basted Interface Card VXI-5524 has 48 digital I/O signals to directly control simple circuits or read-back data values and a 16-bit VXI data expansion bus for more complex circuitry.
Meer informatie
Art.nr.
VXI-5524
Fabrikant
ICS Electronics
GPIB Capabilities
| VXI Capabilities |
|
|||||||||
| Diagnostic Capability |
|
Controls and Indicators
| Indicators | |
| Four LEDs showing the state of the VXIbus interface and VXI-5524's logic. | |
| RDY | On after self test |
| ACCESS | On when address recognized |
| FAIL | On when seltest failed |
| SYSFAIL | VXIbus SysFail signal line |
Interface Specifications
| Parallel Date Lines | 48 TTL/CMOS latched data lines with 33 KΩ pullups, 20 mA source and 40 mA sink capability. Data line direction set in 16-bit increments. Control lines include input handshake lines and output data strobe. User configuration saved in E2ROM and recalled at power turn-on. | ||||||||
| Expansion Bus | 16 data lines, 4 address lines, strobe and write lines. Expansion bus address range is 20 to 38 HEX. All signals have 20 mA source and 40 mA sink capability. | ||||||||
| Triggers |
|
||||||||
| Interrupter Capability | Interrupter line and three Cause Code lines. Generates VXIbus interrupt and latches the cause code when the interrupter line is pulsed. | ||||||||
| Other Signals |
|
Grootte
233 x 15.7 x 76.2mm (W x H x D)
Power
| Power Interface Logic Users |
|
Mechanical
| User Interface | A 3 row x 32 pin DIN connector. |
| VXI Interface | Standard P1 and P2 connectors. |
Included Accessories
| Instruction manual with PCB layout drawings, design rules for user's PCB and example user circuits. |
| Programming guide and sample routines for user interface signals, and expansion bus data transfers. |
| Mounting bracket. |
