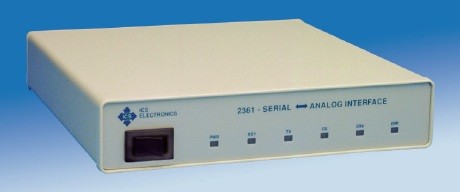

Serial to Analog

RS-232/RS-485 to Analog Interface

● Provides four floating 16-bit analog outputs with 750 VDC isolation. Controls analog devices without ground loops.
● Four differential analog inputs with programmable ranges. Scalable inputs for reading voltage sources, current shunts, sensors etc.
● User setable scale factors for all analaog singals. Matches 2361A commands and data to real values.
● High current drivers can operate external relays etc. Digital control of external devices.
● Digital inputs read or monitor external signals. Generates Service Request Message on selected signal changes.
● RS-485 network capability. Supports multiple units on one RS-485 network.
● Includes sample control, calibration and configuration programs. Complete software package.
