ICS Ethernet-to-Digital Interface Board 8003

Levertijd:
3~4 weken
SKU
8003

Ethernet-to-Digital Interface Board

● Provides a user-definable, 40-line parallel interface with bit, byte, string and binary data transfer capabilities. Fully configurable to the user's needs.
● Signal monitor feature allows the 8003 to detect signal changes on 15 inputs. Reverse channel capability relieves controller of time consuming polling task.
● High-current drivers and input pullup resistors. Drives more devices, longer lines and inputs CMOS signals or switch contacts.
● VXI-11.3 Compatible. Works with the newest test applications and any computer.
● Device configuration, user's IDN message and IP address stored in nonvolatile Flash memory. User can easily set the power-on configuration.
● Includes ICS's interactive VXI-11 keyboard program. Includes ICS's interactive VXI-11 keyboard program.
● Interchangeable with ICS's 4803 GPIB and 2303 Serial boards. Easy interface conversion.

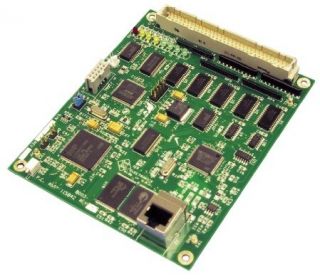

ICS Ethernet-to-Digital Interface Board 8003 Ethernet <-> Parallel Interface is a small, 40 line digital interface that can be used to interface devices with digital signals to the computer via an 10 or 100 Mb Ethernet network. The ICS Ethernet-to-Digital Interface Board 8003's high-power TTL level signals can easily drive small relays or other logic elements. In a typical application, the ICS Ethernet-to-Digital Interface Board 8003 is located inside the device chassis and is powered by the device's +5 volt power. All digital signal connections are on an upright 96-pin DIN connector at one end of the card. A vertical RJ-45 connector on the other end has the Ethernet signals. A right-angle RJ-45 connector is available on the ICS Ethernet-to-Digital Interface Board 8003H. Applications include controlling switching logic, operating displays or passing data to/from other devices.

Meer informatie
Art.nr.
8003
Fabrikant
ICS Electronics
VXI-11 Capabilities
Fully VXI-11.3 compliant
VXI-11.3 Device Interface
Sockets 15 + 1 for UDP
Channel types Data, Abort and Interrupt
Links 64
Interface Names
inst0 for general use
inst1 for transparent data
VXI-11.3 Functions
All VXI-11.3 functions including device read, write, local, remote, clear, trigger, readstb, lock and unlock.
RPC Protocol
Conforms to ONC RPC v2, VXI-11
Ethernet Interface
Type IEEE 802.3 compliant
Speeds
10BaseT (10 Mb/s)
100BaseT (100 Mb/s)
IP Address Static or DHCP
Factory setting 192.168.0.254 static
Interface name any [inst0], [inst1]
Internal Webserver
Capabilities
Provides the following HTML 4.01 compatible web pages:
Welcome
Configuration
Confirmation
Reboot
SCPI Capabilities
Incorporates the SCPI Command Tree. Complies with SCPI v1994.0
Controls and Indicators
CONTROLS
LAN RST Board edge push button
LEDs
PWR Indicates power on
LAN Unit good and connected to an active network
ACT Transferring message to/from the network
RDY Unit has passed self test
TALK Unit is addressed to talk
LSTN Unit is addressed to listen
SRQ SRQ asserted on GPIB bus
ERR Blinks for a detected soft error or solid On for a command error
Digital Lines
Signal Characteristics The 8003's parallel I/O signals have the following electrical characteristics. All time delays lised here are maximums, all pulse widths are minimums.
Lines 40 Digital I/O, 2 Status and Reset Inputs
Input Logic Levels
High = > +2.0 V @ ±10 μA
Low = <0.8 V @ 250 μA
with 33 KΩ pullup to +5 VDC for sensing contacts.
Max. High = 5.5V
Input Timing External Data Inhibit line sets within 1 μs of the active edge of the EDR Input signal and resets after data is loaded. Data loading time for 6 BCD/HEX characters is 350 μsec after the 8013 has
received a device_read rpc.
Output Logic Levels
High = >3 V with 3 mA source
High =>2 V with 24 mA source
Low = 0.0 to +0.55 Vdc, 48 mA sink
Output Timing
Data is transferred to the output 2 to 24 ms after receipt of a message depending upon data transfer mode and command.
Pulse width 10 to 30000 ms [50]
Data Stb Output pulse width, 5 μs
Trigger Output pulse width, 5 μs
Remote Output level asserted when in the remote state
Reset Output pulse width, 30 μs when 8003 reset or sent *RST command.
Grootte
139.7 x 114.3 x 18.4mm (L x W x H)
Mechanical
PCB FR406 Fiberglass
Components RoHS compatible
Construction Lead Free
Connectors and Headers
Digital I/O 96-pin, 3 row female connector with male pins
Ethernet RJ-45
Omgeving
Operation Temperature -10 °C to +70 °C
Storage Temperature -20 °C to +85 °C
Humidity 0-90% RH without condensation
Power
+5 ± 0.2 VDC @ 350 mA
Included Accessories
Instruction Manual
Support CD with sample programs
LAN Crossover Cable
