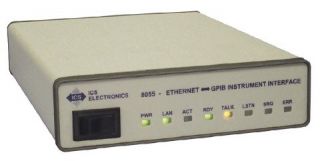

ICS LAN GPIB Instrument Interface 8055
Levertijd:
3~4 weken
SKU
8055
Ethernet-to-GPIB Instrument Interface
● Adds a versatile LAN interface to a GPIB Instrument. Adapts GPIB instruments for VXI-11 or LXI Test Systems.
● Runs from any VXI-11 compliant VISA or SICL library. Supports VEE, LabVIEW, C, and Visual Basic programs on Windows or HP-UX OS.
● Uses RPC calls over a TCP/IP network. Controllable by UNXI,LINUX, SunOS, Apple OS X and similar operating systems.
● Does not require special drivers for each operating system. Eliminates driver problems.
● Reuse existing instruments in Ethernet test systems. Saves instrument replacement costs.
● Configurable with a web browser, with a Windows configuration program or RPC commands. Easy network configuration from any computer.
● Includes ICS's VXI-11 keyboard program. The easy way to test IO configurations before writing a test program.
ICS LAN GPIB Instrument Interface 8055 is a Ethernet-to-GPIB Instrument Interface that adds a LAN interface to a GPIB instrument. The ICS LAN GPIB Instrument Interface 8055 connects the GPIB instrument to any TCP/IP network and provides a VXI-11 service which is easily accessed by all popular test application languages. The ICS LAN GPIB Instrument Interface 8055 maps VXI-11.3 and RPC requests into GPIB commands to control the GPIB instrument. The 8055-instrument combination becomes a VXI-11.3 compatible instrument. The ICS LAN GPIB Instrument Interface 8055 makes it easy to run the instrument anywhere without a GPIB Controller, to include your instrument in an LXI or Ethernet based test system or to run remote tests anywhere in the world over the Internet.
Meer informatie
Art.nr.
8055
Fabrikant
ICS Electronics
LAN Capabilities
| IEEE 488.1 Capabilities | The 8055 meets IEEE-STD-488.1 with the following capabilities: AH1, SH1, C1, C2, C3, C4, and C9 E2 Drivers incorporate power up/down protection. |
Companion Instrument
Companion instrument must be IEEE-488.2 compatible. Supports only one instrument.
488 Bus Performance
| Long term GPIB transfer rates are limited by the LAN data transfer rate, the Client-computer performance and the GPIB device. Short term 8055 data rates are: |
|
| GPIB to 8055 | >180 kbytes/s |
| 8055 to GPIB | >180 kbytes/s |
| Supports | single instrument |
| Device Address | 16 addresses-a single primary or dual consectutive primary addresses from 1-30 or a primary and up to 16 secondary addresses from 0100 to 3030. |
| Auto track | After configuration |
| 8055 address | 0 to 30 [0] |
VXI-11 Capabilities
| Fully VXI-11.3 compliant |
|
| VXI-11.3 | Device Control |
| Clients | 1 to 15 |
| 1 to 15 | Data, Abort and Interrupt |
| Instrument links | 64 max. |
| Locking | By instrument link |
RPC Protocol
Conforms to ONC RPC v2
Ethernet Interface
| Type | IEEE 802.3 compliant | ||
| Speeds |
|
||
| IP Address | Static or DHCP | ||
| Factory setting | 192.168.0.254 static | ||
| Interface name | inst0-inst15 [inst0] |
Internal Webserver
The internal WebServer provides HTML web pages for viewing and setting the 8055's network settings.
Controls and Indicators
| CONTROLS | |
| Power | Front-panel switch |
| LAN Reset | Rear-panel push-button |
| LEDs | |
| PWR | Power on |
| RDY | Unit has passed self test |
| LAN | Unit connected to an active LAN |
| ACT | Transferring messages to/ from the network |
| TALK | Unit is addressed to talk |
| LSTN | Unit is addressed to listen |
| SRQ | SRQ asserted on GPIB bus |
| ERR | Unit has detected a soft error |
System Requirements
Computer with an IEEE 802.3 LAN interface. Requires RPC support or a VXI-11 compliant VISA layer installed.
Software
| The 8055 supports the following application and program languages: |
| NI LabVIEW (5.1 thru 8.5) |
| Agilent VEE - IO Libraries 14.2 and later |
| MathWorks MATLAB |
| Visual Basic 6.0* |
| Visual Basic .NET (2005)* |
| Visual C, C++ and C#* |
| Java* |
| * with VISA or RPC calls |
Grootte
189.2 x 141.5 x 38.6mm (L x W x H)
Mechanical
| Construction | RoHS Compliant | ||||
| Shock/Vibration | Normal handling | ||||
| Connectors |
|
||||
| Power | 9 to 32 VDC @ 4 VA | ||||
| RFI/EMI | CE Certified |
Omgeving
| Operating Temperature | -10 °C to +65 °C |
| Storage Temperature | -40 °C to +70 °C |
| Humidity | 0-90% RH non-condensing |
Included Accessories
| Instruction Manual |
| CD-ROM with VXI-11 Keyboard Controller program and Configuration Utility. |
| LAN Crossover Cable |
| UL/CSA/VDE approved AC power Adapter |
