GPIB to Serial

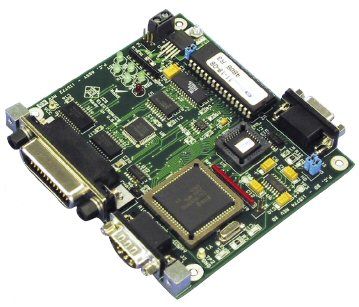

Smart GPIB to RS-422/RS-485 Serial Interface Board

● Provides GPIB and RS-232 data interfaces to RS-422 or RS-485 devices. Adds a GPIB interface and a RS-232 to RS-485 converter.
● Smart firmware passes GPIB data to serial device. Does not require escape sequences or a second GPIB address.
● Provides all IEEE-488.2 functions and the Status Reporting Structure. Easiest way to add IEEE-488.2 capability to any serial device.
● User setable IDN message and serial configuration. Easy setup with ICS utility programs customizes the 4808 for the end product.
● Three operational modes handles any kind of serial device. Can be a smart interface or act as the front end for an embedded controller.
● Mounts directly to host chassis's rear panel. Easy installation eliminates extra cables and reduces cost.
● Runs on 5 ~ 15 VDC. Uses available DC power.

Smart GPIB to RS-422/RS-485 Serial Interface Board

● Provides GPIB and RS-232 data interfaces to RS-422 or RS-485 devices. Adds a GPIB interface and a RS-232 to RS-485 converter.
● Smart firmware passes GPIB data to serial device. Does not require escape sequences or a second GPIB address.
● Provides all IEEE-488.2 functions and the Status Reporting Structure. Easiest way to add IEEE-488.2 capability to any serial device.
● User setable IDN message and serial configuration. Easy setup with ICS utility programs customizes the 4808 for the end product.
● Three operational modes handles any kind of serial device. Can be a smart interface or act as the front end for an embedded controller.
● Mounts directly to host chassis's rear panel. Easy installation eliminates extra cables and reduces cost.
● Runs on 5 ~ 15 VDC. Uses available DC power.

GPIB to Quad Serial Interface

● Provides four RS-232 (single-ended and RS-422/RS-485 (balanced) serial interfaces. One unit connects 4 serial devices to a GPIB bus.
● High speed, 115.2 Kbaud channels include 60 Kbyte buffers. Large data buffers in each
channel.
● 600 K byte/sec. GPIB data transfer rate. Minimizes GPIB Bus time.
● SCPI commands set and query non-volatile serial channel configurations. Configure the unit without having to remove the cover or remember cryptic commands.
● LCD display shows Bus activity, buffer status, serial interface signals and channel settings. Built in status display and diagnostic aid.diagnostic aid.
● Includes a menu-driven PC compatible configuration program. Steps user through configuration choices.
● New 1 U high, metal case has CE approval. Smaller size with full EMIRFI protection.

GPIB to Serial Interface

● Provides a smart GPIB-to-serial conversion path for a serial device. Adds an IEEE-488.2 compatible GPIB interface to any RS-232 or RS-422/485 serial device.
● Provides all IEEE-488.2 functions and the Status Reporting Structure. Easiest way to add IEEE-488.2 capability to any serial device.
● SCPI commands set serial configuration, GPIB address and IDN message. Easy setup customizes the 4866 for the application.
● Smart transparent serial data up to 57.6 Kbaud. Does not require escape sequences or a second GPIB address.
● Includes Diagnostic LEDs. Provides visual indication of unit's operation, address, and selftest status.
● Support includes menu driven configuration programs and GPIBkybd. The easy way to configure the interface or use the programs as examples.

GPIB to Serial ANSI X3.28 Interfaces

● Adapts serial ANSI X3.28 devices to the GPIB Bus. Eliminates unprintable characters
and simplifies protocol handling.
● IEEE-488.2 compatible interfaces. Responds to all IEEE-488.2 Common Commands.
● GPIB/Serial configuration set with SCPI commands and stored in Flash. Eliminates removing covers or setting switches to set or query a setting.
● User selectable singleended RS-232 and balanced RS-422/RS-485 serial signals. Matches any asynchronous serial interface.
● Support includes example programs, LabView Drivers, and menu driven Configuration Programs. Multiple programming options.
● Replaces ICS's older 4814. Smaller 4804B board provides added 488.2 functionality and firmware setup.

Enhanced GPIB to Serial Interface

● Provides RS-232C single-ended and RS-422/RS-485 differential serial interfaces. Compatible with all RS-232 devices and RS-422/RS-485 networks.
● Expanded baud rate range from 50 to 115,200 baud. All standard rates.
● Built-in 256 Kbyte RAM buffer for spooling data. Large data memory.
● Over 600 Kbyte/second GPIB data transfer rate. DMA handshake speeds up GPIB data transfers.
● Transparent data transfer. Does not require data input/output commands.
● Saves configuration settings in flash memory. Configure unit without having to remove the cover.
● Programmable replacement for the NI CV interfaces. Upgrade to a 488.2 Interface.
