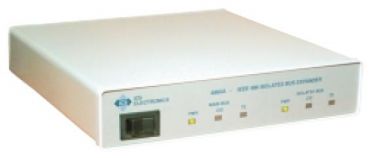

ICS GPIB Bus Expander/Isolator 4862A

Levertijd:
Niet meer leverbaar
SKU
4862A

GPIB Bus Expander/Isolator

● Provides over 2000 V isolation between instruments and bus controller. Eliminates ground loops, noise and associated data errors.
● Allows more than 14 devices on the GPIB bus. Overcomes the bus drive limitation.
● Extends the bus length an additional 20 meters. Overcomes the bus length limitation.
● No false responses to the FindLstn Protocol. Supports all IEEE 488.2 protocols.
● Invisible to the IEEE 488 Bus controller. Needs no bus address or special programming.
● Fast handshake rate. Doesn't slow your system.
● Front panel indicators show controller and talker locations. Visual operating status.
● Small metal case provides EMI/RFI protection. Proven EMI/RFI Compliance.



Brochure EN

The Model 4862A Bus Expander is for those applications requiring only additional bus drive capability. Because the 4862A output signals are not isolated, some internal delay times are reducedto minimal values. All other performance features are identical to the Model 4860A.

Meer informatie
Art.nr.
4862A
Fabrikant
ICS Electronics
Land van herkomst
Verenigde Staten
GPIB Capabilities
IEEE 488 Buses Shell and shield lines of isolated connector are floating.
IEEE 488.1 Compliance
All 16 lines on both bus connectors meet the electrical specifications of the IE Std 488.1-1987.
Iin (low state) is 0.25 mA at 0.4 VDC
Iin (high state) is 40 mA at 0.4 VDC
Vout (low state) is 0.5 VDC at 48 mA
Vout (high state) is 2.6 VDC minimum
Signal Pass-Through
Signal Direction
IFC, REN From local bus
All others Bidirectional
Controller Location
System Controller - Main Bus
Controller-in-Charge - Either Bus
Configurable Settings
Local Bus E1/E2 Drivers
Isolated Bus E1/E2 Drivers
IEEE 488.2 Compliance
No false responses to FindLstn Protocol.
Works with all 488.2 Protocols.
Transfer Timing
Signal Propagation All - 80 ns typical, 180 ns maximum
Handshake Delay 600 ns typical (supports transfer rates > 670 Kbytes/sec.)
ATN Response NRFD and NDAC asserted 600 ns after ATN to compensate for remote device delay.
Controls and Indicators
Front Panel Indicators
Three Local Bus Indicators
PWR Indicates power on
DC CIC on Local Bus
TE Data direction to Local Bus
Three Isolated Bus Indicators
PWR Indicates isolated power on
DC CIC on Isolated Bus
TE Data direction to Isolated Bus
Grootte
1185.2 x 38.6 x 189.2mm (w x h x d)
Omgeving
Operating Temperature -10 °C ~ +55 °C
Storage Temperature -40 °C ~ +70 °C
Humidity 0-90% RH no condensation
Power
9 to 32 Vdc @ 5.5 VA nominal
Mechanical
Casing Metal
IEEE-488 Buses 24-pin connectors with metric lock studs
Bus Isolation None
Included Accessories
Instruction Manual
AC power adapters provided for Europe - 230±10% Vac, 50/60 Hz
