● Combines Analog I/O, Digital I/O, Relay drivers and Temperature readings on one small board. Versitile GPIB board controls almost any device. ● 32-line Digital Interface configurable as gated inputs or latched outputs. User configurable to match the application. ● Six Analog Inputs with programmable ranges. Measures up to ±10 VDC signals. ● Four 0 to 5 VDC Analog Outputs. Controls analog devices. ● High current Relay Drivers sink 300 mA. Drive external relays or use as a digital control line. ● Setup and IDN message saved in Flash memory. Customize the board as part of your product. ● Support includes a menu driven configuration program, Visual Basic and LabView programs. Easy to use, easy to program. ● Companion Terminal Board simplifies test connections. Saves connection time.
The Model 4807 GPIB Data Acquisition and Control Board provides analog and digital signals for controlling virtually any kind of a device and the capability to read back analog voltages, digital signals and temperatures. The 4807 is an IEEE-488.2 compatible device and has a SCPI command parser that accepts SCPI and short form commands for ease of programming. Applications include device control, GPIB interfacing and data logging.

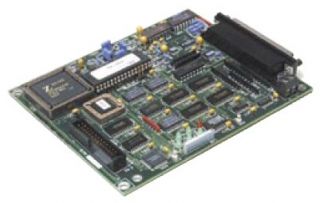

The 4807 is fabricated on a small 4.5 in x 5.5 in board that easily mounts on any panel or other surface in the host chassis. Analog, digital and thermocouple connections are made via a 62-pin metal-shell connector on the 4807. GPIB signals and address switch inputs are on a 26-pin header. The header mates with ICS's GPIB Connector/Switch assemblies which mount a GPIB Connector and an Address switch on the rear panel of the host chassis. The 4807 is powered by +5 volt power supply.
All of the I/O configuration settings can be changed with SCPI commands and are saved in the 4807's internal flash memory.
