ICPDAS PET-7261

Levertijd:
2~7 dagen
SKU
PET-7621

PoE Ethernet I/O Module with 2-port Ethernet Switch and 11-channel Power Relay

● Built-in Web Server
● Web HMI
● Support for both Modbus TCP and Modbus UDP Protocols
● Communication Security
● Dual Watchdog
● Wide Operating Temperature Range: -25 ~ +75°C
● I/O Pair Connection
● Built-in I/O
●Power Relay: 11 Channels

The PET-7261, PoE Ethernet I/O Module with 2 port Ethernet Switch, provides 11 form A electromechanical relays. It features optical isolation for 3000 VDC of transient overvoltage protection and doesn’t have channel-to-channel isolation. The power-on value and safe value of relay are programmable. It can safely be used in applications where hazardous voltages are present.

Meer informatie
Art.nr.
PET-7621
Fabrikant
ICPDAS
Software
Built-In Web Server Yes
Web HMI Yes
I/O Pair Connection Yes
Communication
Ethernet Port 10/100 Base-TX with Auto MDI/MDI-X
Protocol Modbus/TCP, Modbus/UDP
Security ID, Password and IP Filter
Dual Watchdog Yes, Module (0.8 seconds), Communication (Programmable)
Power Relay
Power Relay
Channels 11
Type Power Relay, Form A (SPST N.O.)
Contact Rating 5 A @ 250 VAC/24 VDC (Resistive Load)
Min. Contact Load 10 mA @ 5 V
Operate Time 10 ms (max.)
Release Time 5 ms (max.)
Mechanical Endurance 2 × 107 ops.
Electrical Endurance 105 ops.
Power-on Value Yes, Programmable
Safe Value Yes, Programmable
2-Way Isolation
Ethernet 1500 VDC
I/O 2500 VDC
EMS Protection
ESD (IEC 61000-4-2) 4 kV Contact for each terminal and 8 kV Air for random point
EFT (IEC 61000-4-4) ±4 kV for Power
Surge (IEC 61000-4-5) ±4 kV for Power
LED Indicators
L1 System Running
L2 Ethernet Link/Act
L3 Ethernet 10/100 M Speed
Power
Reverse Polarity Protection Yes
Powered from Terminal Block Yes, 12 ~ 48 VDC
Powered from PoE Yes, IEEE 802.3af, Class1
Consumption 4.6 W
Mechanical
Dimensions (w x l x h) 72 x 123 x 35mm
Installation DIN-Rail or Wall Mounting
Omgeving
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -30 °C ~ +80 °C
Humidity 10 ~ 90% RH, non-condensing
Mijn vraag gaat over: ICPDAS PET-7261

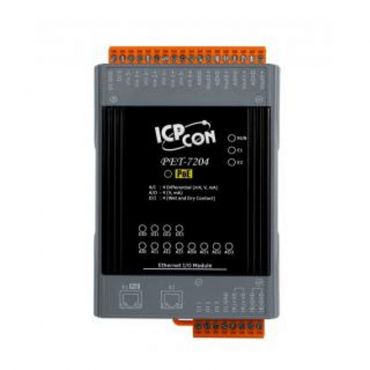

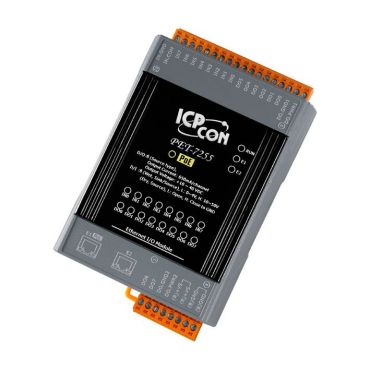

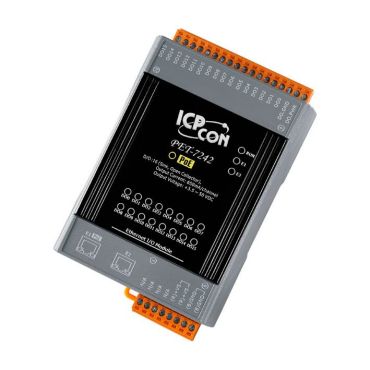

U bent wellicht ook geïnteresseerd in de volgende producten:
