ICPDAS PET-7255

Levertijd:
2~7 dagen
SKU
PET-7255

PoE Ethernet I/O Module with 2-port Ethernet Switch and 8 Digital In / Counter and 8 Digital Out

● Built-in Web Server
● Web HMI
● Support for both Modbus TCP and Modbus UDP Protocols
● Communication Security
● Dual Watchdog
● Wide Operating Temperature Range: -25 ~ +75°C
● I/O Pair Connection
● Built-in I/O
●Digital In/Counter: 8 Channels
●Digital Out: 8 Channels

Brochure EN

The PET-7255, PoE Ethernet I/O Module with 2-port Ethernet Switch, provides 8 Dry/wet contact digital input channels and 8 source-type digital output channels. It features optical isolation for 2500 VDC of transient overvoltage protection but doesn’t provide channel-to-channel isolation.

Each input channel can be used as a 32-bit counter and each output channel can drive 650 mA load. The power-on value and safe value of digital output channel are programmable. It can safely be used in applications where hazardous voltages are present.

Meer informatie
Art.nr.
PET-7255
Fabrikant
ICPDAS
Software
Built-In Web Server Yes
Web HMI Yes
I/O Pair Connection Yes
Communication
Ethernet Port 10/100 Base-TX with Auto MDI/MDI-X
Protocol Modbus/TCP, Modbus/UDP
Security ID, Password and IP Filter
Dual Watchdog Yes, Module (0.8 seconds), Communication (Programmable)
Digital Input/Counter
Digital Input/Counter
Channels 8
Contact Dry +Wet
Sink/Source (NPN/PNP) Dry: Source
Wet: Sink/Source
Wet Contact On Voltage Level +10 VDC ~ +50 VDC
Off Voltage Level +4 VDC Max.
Dry Contact On Voltage Level Close to GND
Off Voltage Level Open
Input Impedance 10 kΩ
Counters Max. Count 4,294,967,295 (32 bits)
Max. Input Frequency 100 Hz
Min. Pulse Width 5 ms
Overvoltage Protection +70 VDC
Effective Distance 500 M Max.
Digital Output
Digital Output
Channels 8
Type Isolated Open Collector
Sink/Source (NPN/PNP) Source
Max. Load Current 650 mA/channel at 25°C
Load Voltage +10 VDC ~ +40 VDC
Overvoltage Protection 47 VDC
Overload Protection -
Short-circuit Protection Yes
Power-on Value Yes, Programmable
Safe Value Yes, Programmable
2-Way Isolation
Ethernet -
I/O 2500 VDC
EMS Protection
ESD (IEC 61000-4-2) 4 kV Contact for each terminal and 8 kV Air for random point
EFT (IEC 61000-4-4) ±4 kV for Power
Surge (IEC 61000-4-5) ±4 kV for Power
LED Indicators
L1 System Running
L2 Ethernet Link/Act
L3 Ethernet 10/100 M Speed
Power
Reverse Polarity Protection Yes
Powered from Terminal Block Yes, 12 ~ 48 VDC
Powered from PoE Yes, IEEE 802.3af, Class1
Consumption 4.0 W
Mechanical
Dimensions (w x l x h) 72 x 123 x 35mm
Installation DIN-Rail or Wall Mounting
Omgeving
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -30 °C ~ +80 °C
Humidity 10 ~ 90% RH, non-condensing
Mijn vraag gaat over: ICPDAS PET-7255

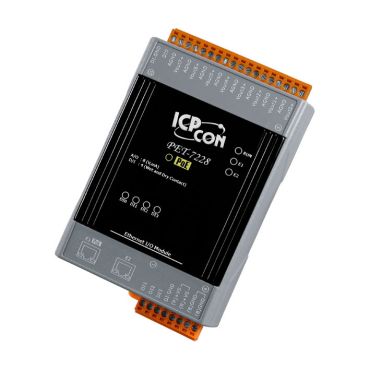

U bent wellicht ook geïnteresseerd in de volgende producten:
