ICPDAS M-7054(D)/M-7054P(D)

Levertijd:
2~7 dagen
SKU
M-7054

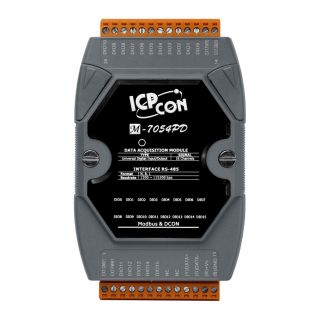

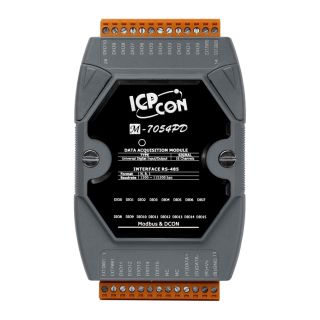

16-channel Isolated Universal Digital Input/Output Module

●  16-channel Universal Digital I/O
● M-7054(D)
                 ●  100 mA Load Current per Channel
                 ●  4 kV ESD Protection
● M-7054P(D)
                 ● 500 mA Load Current per Channel with Short Circuit
                 ● 8 kV ESD Protection
                 ● 3 kV Surge Protection for Power Line
●  All Digital Input Channels can be used as 16-bit Counters
●  4 kV EFT Protection
●  3750 VDC Intra-module Isolation
●  Configurable Power-on Value Settings
●  Configurable Safe Value Settings
●  Wide Operating Temperature Range: -25 ~ +75°C



The M-7054(P) provides 16 channels for universal Digital Input/Output, which can be selected via wire connections. The Digital Input channels are source type and can be used as 16-bit counters, while the Digital Output channels are sink type with short circuit protection and options for configuring power-on and safe Digital Output values. The M-7054(P) also provides ±8 kV ESD, ±4 kV EFT and ±3 kV surge protection and 3750 VDC intra-module isolation to enhance noise protection capabilities in industrial environments.

SPECIFICATIES
Meer informatie
Art.nr.
M-7054
Fabrikant
ICPDAS
Digital Input
Digital Input Dry Contact ON Voltage Level Close to GND
OFF Voltage Level Open
Counters Max. Count 16-bit (0~65535)
Max. Input Frequency 100 Hz
Min. Pulse Width 10 ms
Overvoltage Protection ±60 VDC
Digital Output
Digital Output Output Type Sink
Max. Load Current 500 mA
Load Voltage +5 ~ 50 VDC
Overvoltage Protection 60 VDC
Overload Protection Yes
Short Circuit Protection Yes
Power-on Value Yes, Programmable
Safe Value Yes, Programmable
Communication Interface
Communication
Interface RS-485
RS-485 Bias Resistor No (Usually supplied by the RS-485 Master. Alternatively, add a tM-SG4 or SG-785)
Format N, 8, 1
Baud Rate 1200 to 115200 bps
Protocol Modbus RTU, DCON
Dual Watchdog Yes, Module (1.6 Seconds), Communication (Programmable)
LED Indicators
LED Indicator/Display
System LED Indicator Yes, 1 as Power/Communication Indicator
I/O LED Indicator - Yes (D-version)
7-Segment LED Display -
Isolation
Isolation
Intra-Module Isolation, Field-to-Logic 3750 VDC
EMS Protection
EMS Protection                                                  (P version)
ESD (IEC 61000-4-2) ±4 kV Contact for each Terminal ±8 kV Contact for each Terminal
±8 kV Air for Random Point ±16 kV Air for Random Point
EFT (IEC 61000-4-4) ±4 kV for Power Line
Surge (IEC 61000-4-5) - ±3 kV for Power Line
Power
Power
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 1.2 W ( 1.3 W for D versions)
Mechanical
Mechanical
Dimensions (L x W x H) 123 mm x 72 mm x 35 mm
Installation DIN-Rail or Wall Mounting
Omgeving
Environment
Operating Temperature -25 to +75°C
Storage Temperature -40 to +85°C
Humidity 10 to 95% RH, Non-condensing
