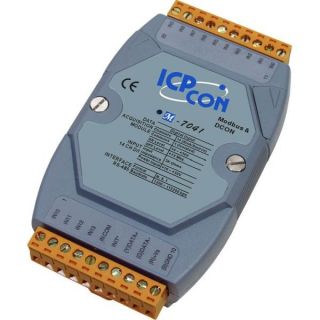

ICPDAS M-7041

Levertijd:

2~7 dagen

SKU

M-7041

14-channel Isolated Digital Input Module

● Sink- or Source-type Digital Inputs
● Photocouple Isolation
● All Channels can Be Used As 16-bit Counters
● 4 kV ESD Protection
● 3750 VDC Isolation Voltage
● Built-in Dual Watchdog
● Wide Operating Temperature Range: -25 ~ +75°C
● All Types of On/Off Control
● Industrial Automation
● Industrial Machinery
● Building Automation
● Food and Beverage Systems
● Semiconductor Fabrication
● Control Systems

Brochure EN

Details

The I-7041 and I-7041P provide 14 channels for digital input, each of which features photocouple isolation. In addition, either sink- or source-type digital input can be selected via wire connections, and all channels are able to be used as 16-bit counters. The I-7041D and I-7041PD include 14 LED indicators that can be used for DI channel status monitoring. 4 kV ESD protection and 3750 VDC intra-module isolation are standard. The hardware specifications for the M-7041 and M-7041P are the same as for the I-7041 and I-7041P, and support both the Modbus RTU and DCON protocols, which can be configured via software. ICPDAS recommends selecting the "P" version of the digital input module for industrial use.

SPECIFICATIES

Meer informatie

Art.nr.

M-7041

Fabrikant

ICPDAS

Digital Input/Counter

Channels	14
Contact	Wet
Sink/Source (NPN/PNP)	Sink/Source
Wet Contact	On voltage level: +1 VDC max. Off voltage level: +4 ~ 30 VDC
Dry Contact	On voltage level: - Off voltage level: -
Counters	Max. count: 65535 (16-bit) Max. input frequency: 100 Hz Min. Pulse Width: 5 ms
Input Impedance	3 KΩ
Channel-to-Channel Isolation	-
Overvoltage Protection	+/- 35 VDC
