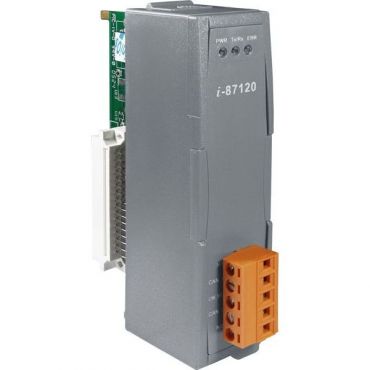

ICPDAS I-8120W

Levertijd:
2~7 dagen
SKU
I-8120W

Module with one programmable CAN port, WinPAC Series MCU CAN port library, 80186 80MHz CPU, 8 KB DPRAM, 512 KB flash, 512 KB SRAM, 120 Ω terminal resister selected by switch



● Support WinPAC-8000 series MCU (driver for LinPAC and iPAC series MCU will be available soon)
● Follow ISO11898-2 specification
● NXP SJA1000T CAN controller
● NXP 82C250 CAN transceiver
● CAN controller frequency:16 MHz
● 2500 vrms photo-isolation protection on CAN side
● Switch for 120Ω terminator resistor of CAN bus
● One CAN communication port
● Compatible with CAN specification 2.0 parts A and B
● Provide default baud rate: 10 kbps, 20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 800 kbps, and 1 Mbps



The CAN (Controller Area Network) is a serial communication bus especially suited to interconnect smart devices to build smart systems or sub-system. It efficiently supports distributed real-time control with a very high level of security. In CAN networks, there is no addressing of subscribers or stations in the conventional sense, but instead prioritized messages are transmitted. As standalone CAN controller, I-8120 with WinCon / LinCon series MCU (main control unit) represents an economic solution.

It has one CAN communication port with 5-pin screw terminal connector, and is useful for a wide range of CAN applications. Besides, I-8120 uses the new Phillips SJA1000T and transceiver 82C250, which provide both CAN 2.0A and 2.0B specific, re-transmission function, bus arbitration and error detection.

Combining the benefits of WinCon / LinCon series MCU without increasing the CPU loading heavily, it could be a powerful multi CAN port programmable device server by driving the program in the 186CPU of I-8120. It can also communicate with other kinds of communication interface, such as RS-232/RS-485/Ethernet of WinCon and LinCon Series MCU. Therefore, users can design the various applications between different communication protocols.

https://fieldworks.nl/media/imageproducts/icpdas/overviewstructure.jpg





APPLICATIONS

● DeviceNet, CANopen, CAN J1939, SDS (System Wide Network) protocol application
● CAN bus communication application
● Industry automation
● Industrial Machinery
● Building Automation
● Food & Beverage
● Semiconductor Fabrication
● Control system

https://fieldworks.nl/media/imageproducts/icpdas/photo2.gif



ARCHITECTURE

https://fieldworks.nl/media/imageproducts/icpdas/Basic_Software_Architecture.jpg



Default Firmware Architecture

https://fieldworks.nl/media/imageproducts/icpdas/Default_firmware_architecture.jpg



User-defined Firmware Architecture

https://fieldworks.nl/media/imageproducts/icpdas/User_defined_firmware_architecture.jpg

https://fieldworks.nl/media/imageproducts/icpdas/RelationshipOfUserdefinedSoftware.jpg



Firmware Library Structure

https://fieldworks.nl/media/imageproducts/icpdas/Firmware_Library_architecture.jpg

Meer informatie
Art.nr.
I-8120W
Fabrikant
ICPDAS
Hardware
CPU 80186, 80 MHz or compatible
SRAM/Flash/EEPROM 512KB / 512KB / 16KB
DPRAM 8 KB
Watchdog Watchdog IC
ESD Protection 2kV class A and 3kV class B
Software
Driver I-8120W (for designing user-defined firmware), WinPAC
Library TC/BC/TC++/BC++, eVC++ 4.0
CAN Interface
Controller NXP SJA1000T with 16MHz clock
Transceiver NXP 82C250
Connector 5-pin screwed terminal block (CAN_GND, CAN_L, CAN_H, N/A for others)
Baud Rate 10 k, 20 k, 50 k, 125 k, 250 k, 500 k, 800 k, 1 M (allow user-defined baud rate)
Isolation 3000V DC for DC-to-DC, 2500 vrms for photo-couple
Terminator Resistor Switch for 120Ω terminator resistor
Specification ISO-11898-2, CAN 2.0A and CAN 2.0B
LED Indicators
Round LED PWR LED, RUN LED, ERR LED
Power
Power Supply Unregulated +10 ~ +30 VDC
Protection Power reverse polarity protection, Overvoltage brown-out protection
Power Consumption 1.5W
Mechanical
Dimensions (w x l x h) 31 x 91 x 115mm
Omgeving
Operating Temperature -25 ~ 75 ℃
Storage Temperature -40 ~ 80 ℃
Humidity 5 ~ 95% RH, non-condensing
