ICPDAS I-8041W

Levertijd:
2~7 dagen
SKU
I-8041W

32-channel Isolated Digital Output Module

With different communication interface, the I/O modules can be classified to high communication speed (Parallel bus) 8K series modules and low communication speed (serial interface) 87K series modules.



There are two types of I/O modules, Parallel and Serial. The parallel modules (I-8 Series) are high-speed modules and support MCU (Main Control Unit) only.
Item I-87K Series
Communication Interface Parallel Bus
Protocol -
Communication Speed Fast
DI with Latched Function -
DI with Counter Input -
Power On Value -
Safe Value -
Programmable Slew-rate for AO Module -



High Profile VS Low Profile

With different form factor, I/O modules can be classified to high profile and low profile. Basically, high profile and low profile modules that with same item number also have same I/O channel number.

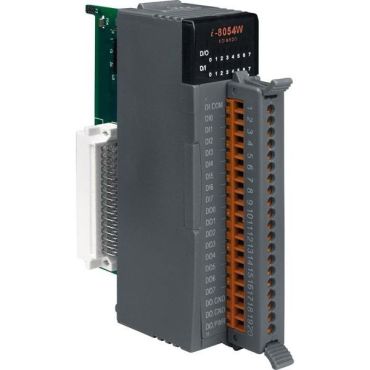

For example: I-8054 and I-8054W both has 8 DI and 8 DO.

Except I/O channel number, other specifications could be different. You have to double check whether the specifications suit your application.

For example: For I-8054W, its DI logic high level is +10 ~ +50V. But for I-8054, it is +3.5 ~ +30V

Meer informatie
Art.nr.
I-8041W
Fabrikant
ICPDAS
Digital Output
Output Channels 32 (Sink)
Output Type Open-collector
Max. Load Current 100 mA/Channel
Load Voltage 5 VDC ~ 30 VDC
Intra-module Isolation, Field to Logic 3750 Vrms
LED Indicators
1 LED Power Indicator
32 LEDs Digital Output Indicators
Power
Power Consumption 0.3 A@5 V = 1.5 W, ±5% for Hardware v1.6
Mechanical
Dimensions (w x l x h) 30 x 85 x 114 mm
Omgeving
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -30 °C ~ +85 °C
Humidity 5 ~ 95% RH, non-condensing
