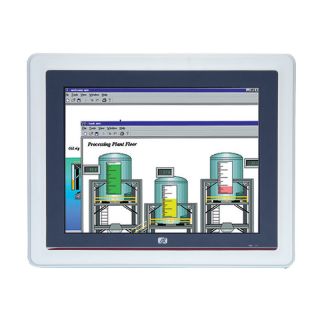

Fanless Touch Panel Computer - GOT5100T-834
10.4" XGA/SVGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor J1900 (up to 2.42 GHz)
● 10.4" XGA/SVGA TFT LCD display with LED backlight
● Fanless design with Intel® Celeron® processor J1900 quad-cores
● Supports 2 Gigabit LAN, 4 USB & 2 COM ports
● Supports optional panel mount, wall mount, VESA arm and desktop stand
● Plastic and IP65-rated front bezel
● Supports RFID (optional)
The GOT5100T-834 is a 10.4" Intel® Celeron® based fanless touch panel computer. In response to market demand, this panel computer is a cost effective solution. It adopts a modern, super sleek and fanless design and is equipped with a 10.4" TFT LCD as well as Intel® Celeron® processor J1900 4 cores up to 2.42 GHz (Bay Trail). For wireless Network connection, the GOT5100T-834 offers 2 mini card slots. By just plugging in the mini card WLAN card, customers can have instant access to wireless LAN/GPRS/GSM/4G environments. Besides, it provides two types of power input. One is DC power input (9~36VDC) with terminal block connector. The other is AC power adapter with screw type connector.
Super slim & ultra light design
The GOT5100T-834 is a super slim touch panel computer for space-limited environment with its thickness of 45.8mm and weight of 1.8 kg only, which make it installed
everywhere.
Built-in internal WLAN antenna
The GOT5100T-834 provides 2 mini card slots and a built-in WLAN antenna for wireless network connections. By simply plugging in the wireless LAN card, customers can use the GOT5100T-834 in a wireless LAN/GPRS/GSM/4G environments.
Excellent thermal solution: aluminum back chassis
With Axiomtek's patent for plastic plus aluminum mechanism design, the GOT5100T-834 can dissipate the heat easily and keep the system operation stable.
Display Type | 10.4" XGA/SVGA TFT LCD with LED backlight |
Brightness (cd/m2 ) | 350 nits (XGA) 400 nits (SVGA) |
Resolution | 1024 x 768 (XGA) 800 x 600 (SVGA) |
Viewing Angel (H/V) | 140°/120° |
CPU | Intel® Celeron® Processor J1900 4 cores (up to 2.42 GHz) |
System Memory | 1 x 204-pin DDR3L-1333 MHz SO-DIMM max. up to 8 GB |
Storage |
1 x SATA SSD/HDD |
COM |
2 x RS-232/422/485 |
USB | 2 x USB 3.0 2 x USB 2.0 |
Ethernet | 2 x 10/100/1000Mbps Ethernet (Intel® i210IT) |
Audio | 1 x Line out |
1 x Full-Size Mini PCI Express Mini Card with SIM Slot
AC version: 100-240V AC-DC 60W power adapter
Operating temperature: 0°C ~ +50°C
Storage temperature: 0°C ~ +50°C
Relative humidity: 20% ~ 90% @ 40°C; non-condensing
Operation vibration: 2.0G, 5 ~ 500Hz, random for CFast™ card
Windows 7 Professional
Windows 8.1 Professional
Windows Embedded 7 Standard
Windows Embedded 8 Standard
