CWE GEMINI Respiratory Monitor

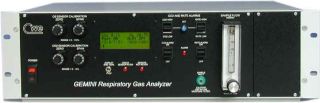

GEMINI Respiratory Monitor
Measures:
● Oxygen
● Carbon Dioxide
● Respiratory Rate
Standard Features:
● Paramagnetic O2 analyzer
● Infrared CO2 analyzer
● Analog and RS-232 outputs
● Experndable with additional function modules
The CWE GEMINI Respiration Monitor measures CO2, O2, and respiration rate of spontaneously breathing or ventilated animals. It provides breath-by-breath readings for end-tidal CO2 and O2 and instantaneous respitory rate (breaths/minute). Adjustable alarms are provided to monitor CO2 and respiratory rate.
This instrument uses the latest sensor technology for accuracy, stability, and fast response. CO2 is measured with a temperature-controlled miniature infrared analyzer cell; O2 is measured with a new paramagnetic sensor cell. Respiratory rate is computed using the normal excursion of the CO2 signal, and is updated on each breath.
Simple set up and operation: The sample inlet tubing is connected to the endotracheal tube as close to the animal as possible. High and low alarms are set using a single knob, and the settings are stored in non-volatile memory so they do not have to be reset the next time the instrument is used. All measurements are displayed on the front panel LCD display, and are available as analog voltages for external recording. In addition, a serial port provides all the measurement in a simple ASCII format for collection by any computer.
Expandable: An open slot is provided for installation of any SYSTEM 1000 instrumentation module. Available modules include a cardiotachometer (Model CT-1000), blood pressure amplifier (Model PM-1000), plethysmographic respirator monitor for very small animals (Model RR-1000), and many other functions. This expandability allows you to configure a complete physiological monitor for use during surgery or extended experiments.
Applications: The CWE GEMINI Respiratory Monitor monitor provides complete information for respiratory status assessment for animal as small as rats. It comes complete with an accessory pack of inlet tubing, connectors, and moisture filters.
| Oxygen Analyzer Type | Paramagnetic |
| Linearity (0-100%) | ±0.1% O2 |
| Repeatability | <0.01% O2/hour |
| Zero Stability | ±0.1% O2/day |
| Zero Stability | ±0.2% O2/month |
| Response Time | <200 mS |
| Operating Temperature | 0 °C - 65 °C |
| Maximum Pressure | 15 psi |
| Maximum Sample Flow | 250 ml/min. |
| Instrument Measurement Range | 0 - 100% O2 |
| Carbon Dioxide Analyzer Type | Single-beam infrared |
| Operating Range | 0 - 10% CO2 |
| Linearity (full scale) | 1% FS |
| Zero Drift | 0.1% (8 hours), 0.2% (24 hours) |
| Sensor Cell Temperature | Controlled at 48 °C |
| Warm-up Time | <5 min. |
| Maximum Sample Flow | 250 ml/min. |
| Instrument Measurement Range | 0 - 10.0% CO2 |
| Respiratory Rate Measurement Range | 10 - 600 breaths/min. |
| Respiratory Rate Alarm Range | 9 - 599 breaths/min. |
| O2 Output | 100 mV/% O2 |
| CO2 Output | 100 mV/% CO2 |
| Serial Data Output Format | 9600 baud, 8 data bits, no parity, 1 stop bit |
| Serial Data Interval | Complete set of readings sent 1 per breath, or 1 per minute |
| Serial Output Connector (rear panel) | DB9 male |
