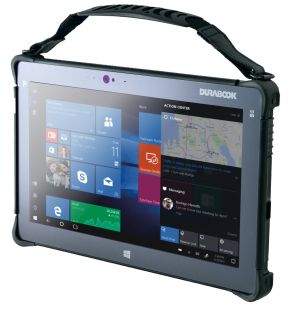

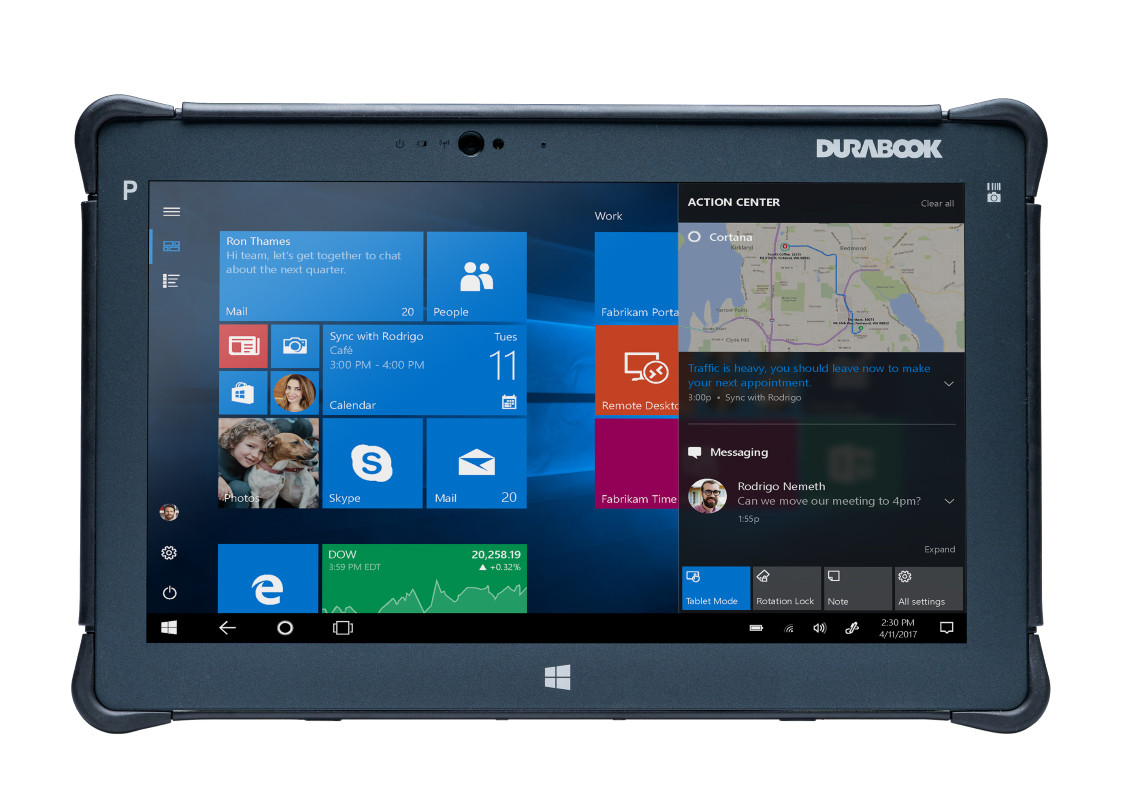

DURABOOK R11 G3 - Lichtgewicht Rugged Tablet
● 8ste Generatie Intel® Quad Core™ i5 / i7 Processor
● 11.6" Full HD display met aanraakscherm
● Helder Zonlicht afleesbaar optisch gebonden display
● Exclusieve aanraaktechnology geschikt voor latex handschoenen en zelfs natte omgevingen
● Leverbaar met geïntegreerde 4G / LTE en GPS
● Camera met LED Flash
● Optioneel geïntegreerde 1D/2D barcode lezer
● Optioneel met Smart card lezer
● Windows 10 Professional
● Ultra lichtgewicht, slechts 1.2 kg
● IP65 Soft en Water beschermd
● Mil-STD810G schok, val en trilling gecertificeerd
| DURABOOK R11 G3 |        |
PORTABILITY AND POWER FOR A PRODUCTIVE MOBILE WORKFORCEThe Durabook R11 now has the latest Intel® 8th Generation CPU, Intel® UHD 620 graphics processor, DDR4 memory, Intel® Dual Band Wireless AC 9260, and Bluetooth V5. The Durabook R11 is delivering the highest levels of performance and connectivity available for mobile workers who are being asked to do more complex and demanding tasks in the field. |
 |
CUSTOMIZABLE TECHNOLOGY
Maximum Connectivity
The R11 offers fast, seamless connectivity boosted by multi-carrier 4G LTE capabilities. The dedicated GPS for precise positioning and accuracy the fully rugged R11 is designed for mobile workers and law enforcement use.
 |
PORTABILITY WITHOUT SACRIFICEMobile workers crave performance and reliability, not bulk and weight. At 19.5mm thick and only 1.2 kg, the Durabook R11 is the most compact and easily portable fully rugged tablet in its class, making it the mobile computer workers want in their toolkit. |
RELIABLE UNDER ANY CIRCUMSTANCEThe Durabook R11 exceeds the capabilities of standard tablets and detachable computers by meeting MIL-STD-810G requirements for drop, vibration, temperature extremes and more, as well as offering an IP65 rating and ANSI 12.12.01 C1D2 certification. With the R11, failure is not an option. With up to 16 hours of life on a single charge of its high-capacity battery, Durabook R11 users can focus on the task at hand, confident they can a perform a full day’s work without ever needing to plug in. |
 |
 |
|
 |
Windows 10 Professional
| Dust & Water Proof | IP65 |
| Drop | MIL-STD 810G 516.6 Procedure IV, 6 drops from 4 feet height to plywood over concrete |
| Vibration | MIL-STD 810G 516.6 Procedure I Cat. 24, Fig. 514.6E-1 |
| Temperature | Operating: -10°C ~ 55°C |
| Humidity | 5% ~ 95% |
| Altitude | Operating: 15.000 feet |
Intel® Core™ i5 Technology
Intel® Core™ i5-8250U Processor 1.6GHz
Max. 3.4 GHz with Intel® Turbo Boost Technology
- 6MB Intel® Smart Cache
Intel® Core™ i7 Technology
Intel® Core™ i7-8550U Processor 1.8 GHz
Max. 4.0 GHz with Intel® Turbo Boost Technology
- 8MB Intel® Smart Cache
Intel® Core™ i7 vPro™ Technology
Intel® Core™ i7-8650U vPro™ Processor 1.9GHz
Max. 4.2 GHz with Intel® Turbo Boost Technology
- 8MB Intel® Smart Cache
8GB RAM DDR4 (max. 16GB RAM)
SSD 128GB ~ 512GB
Intel® UHD 620 Graphics
11.6” Full HD (1920 x1080)
1000 nits Dynavue® sunlight readable display with capacitive multi-touch Screen
Build-in Ambient Light Sensor
Expansion Slots:
Optional 1D/2D Barcode Reader
Optional RJ-45 x 1 or Smart Card / CAC Reader or RFID¹
Capacitive Multi-Touch
SIM card
Optional expansion module with Smart Card Reader / CAC Reader
1 x 3.5mm combo jack for Mic/Headset
1 x SIM card slot for WWAN data communication
1 x Expansion Connector for Expansion Modules

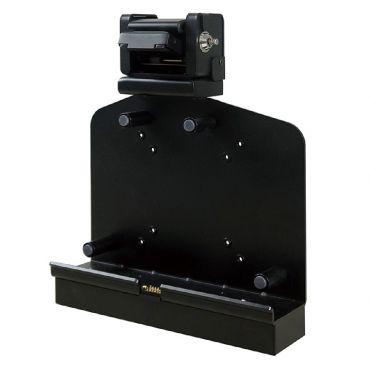

1 x Docking Connector
2 x RF pass-through connectors for WWAN & GPS
WLAN: Intel® Dual Band Wireless-AC 9260 802.11ac
Bluetooth: v5.0
Kensington Lock
TPM 2.0
Administrator Password/Boot password
Computrace® Ready

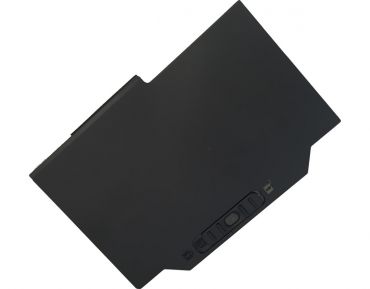

Removable Lithium Polymer Battery, 11.1V, 4130 mAH, 3S1P, 46W
Up to 8h battery life
Optional High Capacity Removable Lithium Polymer Battery
Up to 16h battery life
Adapter: Output: 19V, 3.42A; 65W,
Input: 100V-240V, 50Hz-60Hz,
Green Design
RoHS/REACH compliant, EPEAT compliant
Certifications
US: FCC, DOC+, CUS, FCC ID
EU: CE, CB
CAN: CUS, IC
Weight: 1230 gram (weight may vary depending on configuration)
| Drop Specification |
6 face drops of 48 inches to plywood over concrete with unit on with SSD 1 unit to pass |
MIL-STD 810G 516.6 Procedure IV(Modified) |
| Operating Temperature | -10°C to +55°C | MIL-810G Method 501.5 Procedure II modified |
| Storage Temperature | -33°C to +71°C | MIL-810G Method 501.5 Procedure slimatic category A1 - Hot Dry (modified) and MIL-STD-810G Method 502.5, Procedure I climtaic category C1 - Basic Cold |
| Humidity | 95% | |
| Vibrations operating |
Fig. 514.6E-1 |
MIL-STD 810G 514.6 Procedure I Cat. 24 |
| Spill Proof | IEC 60529 IP-4X standard | |
| Dust Proof | IEC 60529 IP-5X standard | |
| Steel Ball impact test |
Glass t hickness: 1.1mm |
|
| Altitude operating | 4572m | MIL-STD-810G Method 500.5 |
| Altitude non-operating | 12192m | MIL-STD-810G Method 500.5 |
