Palm-size μPAC with PoE

● Support PoE
● Support for Virtual COM technology
● Support Modbus Protocol
● Easy-to-use software development tool kits (using C language)
● Ethernet Protocols
● Support Web Configuration
● Remote Configuration/Maintenance
● Built-in watchdog timer (WDT)
● I/O Expansion Bus Interface

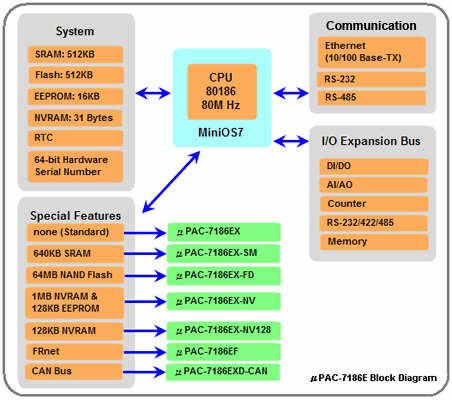

μPAC-7186E is our new generation of palm-size PAC. It equips a more power full CPU (upgraded from 40M Hz to 80M Hz) and a faster Ethernet port (upgraded from 10 Base-T to 10/100 Base-TX). Compared with I-7188E series, μPAC-7186E’s computing speed is up to 4 times faster. And there are more memory configuration choices to select from.



The ICPDAS μPAC-7186PEX is a palm-size programmable automation controller that with Ethernet, RS-232, RS-485 communication. ICPDAS provide easy-to-use software development tool kits (Xserver, VxComm, Modbus libraries). Users can use them to easily integrate serial devices to have Ethernet/Internet communication ability and through the standard Modbus protocol to communicate with SCADA software (Indusoft, ISaGRAF, DasyLab, Trace Mode, Citect, iFix, etc.).

For the hardware, it also supports an I/O expansion bus. The I/O expansion bus can be used to implement various I/O functions such as D/I, D/O, A/D, D/A, Timer/Counter, UART, flash memory, battery backup SRAM, ASIC key & other I/O functions. Nearly all kinds of I/O functions can be implemented by this bus but the bus can support only one board. There are more than 50 boards available for ICPDAS μPAC-7186PEX, you can choose one of them to expand hardware features.

Power-over-Ethernet (PoE) allows power and data to be carried over a single Ethernet cable, so a device can operate solely from the power it receives through the data cable. This innovation allows greater flexibility in office design, higher efficiency in systems design, and faster turnaround time in set-up and implementation.

Meer informatie
CPU 80186 or compatible (16-bit and 80 MHz)
Flash 512 KB; Erase unit is one sector (64K bytes); 100.000 erase/write cycles
16 KB
Data retention: 40 years; 1.000.000 erase/write cycles.
NVRAM 31 Bytes (battery backup, data valid up to 10 years)
RTC (Real Time Clock) RTC Provide seconds, minutes, hours, date of week/month; month and year, valid from 1980 to 2079
64-bit Hardware Serial Number Yes
Built-in Watchdog Timer Yes (0.8 second)
Communication Ports
COM1 RS-232 (TxD, RxD, CTS, RTS and GND); Non-isolated
COM2 RS-485 (D2+, D2-; self-tuner ASIC inside); Non-isolated
Ethernet Port
10/100Base-TX Ethernet Controller
(Auto-negotiating, Auto_MDIX, LED indicator)
COM Port Formats
Data Bit 7, 8
Parity Even, Odd, None
Stop Bit 1
LED Indicators
5-Digit 7 Segment LED Display No
System LED Indicator Yes (Red)
PoE LED Indicator Yes (Green)
Hardware Expansion
I/O Expansion Bus Yes
User Defined I/O Pins 14 pins
Protection Power reverse polarity protection
Input Range
PoE IEEE 802.3af, Class 1
Terminal Block +12 ~ 48 VDC (non-regulated)
Power Consumption 1.5 W
Dimensions (w x h x d) 72 x 123 x 35mm
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -40 °C ~ +80 °C
Humidity 5 ~ 90% RH, non-condensing
