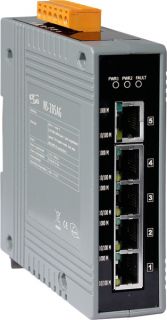

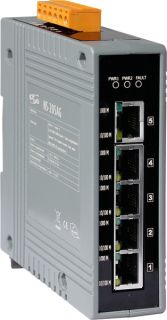

ICPDAS Unmanaged 5-Port Industrial Switch NS-205G/NS-205AG

Levertijd:
2~7 dagen
SKU
NS-205G

Unmanaged 5-Port Industrial 10/100/1000 Base-T Ethernet Switch

● Power saving Technology
Max. power savings when connected devices are powered down, power saving up 60%
● Each port supports 10/100 and 1000 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
●10 Gbps high performance memory bandwidth
● Power Input +10 ~ +30 VDC
● Supports operating temperatures from -40 °C ~ +75 °C
● DIN-Rail




The NS-205G/NS-205AG is 5-port unmanaged gigabit switches that support 10/100/1000 Base-T, with a 10/100/1000M auto negotiation feature and auto MDI/MDI-X function. It can connect 5 workstations and automatically switches the transmission speed (10 Mbps or 100 Mbps or 1000 Mbps) for corresponding connections.

That is an ideal solution for bandwidth-hungry applications (such as high resolution digital image transmission, video/audio file streaming/downloading, and server farm connectivity).

The flow control mechanism is also negotiated. There is link/data rate LEDs for each port to aid troubleshooting. Port connectors are shielded RJ-45.

Power Savings by Number of Connected Ports and Link Status: Computers do not require Internet access all the time; neither do switches utilize all ports at all times. When a computer or network equipment is shutdown, switches often remain on and continue to consume considerable amount of power. With Green Ethernet technology, NS-205G/NS-205AG can automatically detect link status and reduce power usage of ports that are idle. Computers or any connecting parties set to standby mode (not power off), however, will not provide significant power savings.

Meer informatie
Art.nr.
NS-205G
Fabrikant
ICPDAS
Land van herkomst
Taiwan
Technology
Standards IEEE 802.3, 802.3u, 802.3ab and 802.3x
Processing Type Store & forward, wire speed switching
MAC Addresses 8 K
Memory Bandwidth 10 Gbps
Frame buffer memory 1 Mbit
Jumbo Frames 9 K for Speed 1000M
Flow Control IEEE802.3x flow control, back pressure flow control
Interface
RJ45 ports 10/100/1000 Base-T auto negotiation speed, F/H duplex mode,
and auto MDI/MDIX connection
LED Indicators Power, 10/100/1000M, Link/Act
Ethernet Isolation 1500 Vrms 1 minute
Frame Ground for EMS Protection Yes
Cable
Ethernet : 2-pair UTP/STP Cat.3,4,5, EIA/TIA-568 100 Ω
Fast Ethernet : 2-pair UTP/STP Cat. 5, EIA/TIA-568 100 Ω
Gigabit Ethernet : 4-pair UTP/STP Cat.5, EIA/TIA-568 100 Ω
Power
Input Voltage Range

NS-205G: +10 ~ +30 VDC (Non-isolation)

NS-205AG: +12~ +48 VDC (Non- isolated)

Power consumption 0.2 A@24 VDC, ±5% arrowed with 1000 M Full duplex
Protection Power reverse polarity protection
Frame Ground for EMS Protection Yes
Connection 3-Pin Removable Terminal Block
Mechanical
Case Plastic
Flammability UL 94V-0
Dimensions (w x h x d) 33 x 107 x 78mm
Installation DIN-Rail
Environmental
Operating Temperature -40 °C ~ +75 °C
Storage Temperature -40 °C ~ +85 °C
Humidity 10% to 90% RH, non-condensing
