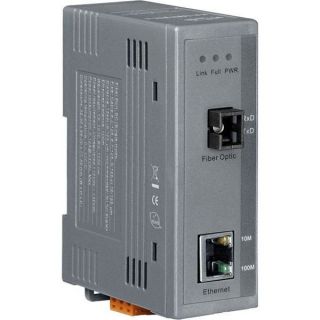

ICPDAS Industrial Fiber Media Converter NS-200WDM

2~7 dagen

Industrial Single-Strand 10/100 Base-T(X) to 100 Base-FX Media Converters

● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 1.4 Gbps high performance memory bandwidth.
● Integrated look-up engine with dedicated 1 K unicast MAC addresses
● Supports +10 ~ +30 VDC voltage
   Reverse Polarity Protection
● Supports operating temperatures from 0 °C ~ +70 °C
● DIN-Rail Mounting for industrial usage


Using the fiber optic medium for Ethernet applications has become more popular due to fiber optic's excellent physical features, especially for long distance networks. However, fiber optic cable is very expensive, so if we can apply a solution that uses only 1 cable instead of 2, the infrastructure cost can be cut in half.
The NS-200WDM Series provides a solution that reduces your expense by 50%!

The NS-200WDM Series of Single-Strand Fiber Converters supports Wavelength Division Multiplexing (WDM) technology that allows two independent data communication channels to transmit and receive over one standard, single mode, fiber optic line. This not only doubles your existing bandwidth, but also effectively reduces the cost of creating a new fiber optic infrastructure.50% Cost Saving for Fiber Optic Infrastructures
With a pair of NS-200WDM series products (NS-200WDM-A and NS-200WDM-B), you can double the utilization of your existing, costly fiber optic cable, and save 50% of the cost of a newly installed fiber optic application.

It contains "soft start" function with overload protection, high-low voltage protection.


Meer informatie
Standards IEEE802.3, 802.3u, 802.3x
Processing Type Store & forward wire speed switching - no delays
MAC Addresses 1024
Memory Bandwidth 1.4 Gbps
Flow Control IEEE802.3x flow control, back pressure flow control
RJ45 port 10/100BaseT(X) auto negotiation speed, F/H duplex mode,
and auto MDI/MDIX connection
Fiber Optic port 100 Base-FX (Single-mode; SC connector)
LED Indicators 10/100M, Link/Act, Full duplex/Half duplex (Fiber Port)
Ethernet Isolation 1500 Vrms 1 minute
Frame Ground for EMS Protection Yes
Fiber Optic
Single-mode fiber cables: 8.3/125, 8.7/125, 9/125 or 10/125 μm
Distance: 15 km, (9/125 μm mrecommended) for full duplex
Wavelength :
TX: 1310, RX: 1550 nm for NS-200WDM-A
TX: 1550, RX: 1310 nm for NS-200WDM-B
Min. TX Output: -14 dBm
Max. TX Output: -8 dBm
RX Sensitivity: -31 dBm
Ethernet Transmission Distance
Ethernet: 2-pair UTP/STP Cat.3,4,5, EIA/TIA-568 100 Ω
Fast Ethernet: 2-pair UTP/STP Cat. 5, EIA/TIA-568 100 Ω
Input Voltage Range +10 ~ +30 VDC (Non-isolation)
Power consumption 0.12 A@24 VDC, ±5% arrowed with 100M Full duplex
LED Indicator Yes
Protection Power reverse polarity protection
Frame Ground for EMS Protection Yes
Connection 3-Pin Removable Terminal Block
Case Plastic
Flammability UL 94V-0
Dimensions (w x h x d) 32.3 x 99.0 x 77.5mm
Installation DIN-Rail Mounting
Operating Temperature 0 °C ~ +70 °C
Storage Temperature -20 °C ~ +85 °C
Humidity 10% ~ 90% non-condensing
