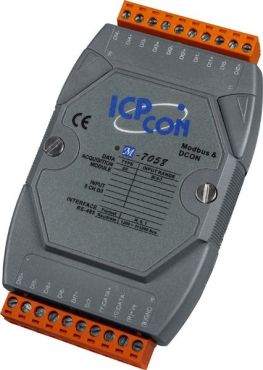

ICPDAS M-7058D
Levertijd:
2~7 dagen
SKU
M-7058D
8-channel 80-250VAC Isolated Digital Input Module with 16-bit Counters and LED Display (Gray Cover)
● Digital input channel: 8 differential
● Operating Voltage: 80 ~ 250 VAC peak
● Input Voltage
ON Voltage Level: AC 80 V min.
OFF Voltage Level: AC 30 V max.
● Maximum Input Voltage: AC 250 V
● AC frequency: 45 Hz (min.)
● Isolation: 5000 Vrms
The M-7000 series is a family of network data acquisition and control modules that support Modbus RTU and DCON protocols. With the Modbus RTU protocol, it can easily communicate with most popular SCADA/HMI software and PLC. It has the same form factor as the I-7000 series.
ICPDAS Digital Input Module M-7058D offers 8 channels differential for AC digital input, each of which features photocouple isolation for channel to channel. Its on voltage level lies in 80 V ~ 250 VAC. All DI channels are also able to be used as 16-bit counters. It has 8 LED indicators for DI channel status. 4 kV ESD protection and 5000V intra-module isolation are standard.
Meer informatie
Art.nr.
M-7058D
Fabrikant
ICPDAS
Digital Input
| Channels | 8 | ||||
| Input Type | AC, Differential, isolated | ||||
| On Voltage Level | 80 ~ 250 VAC | ||||
| Off Voltage Level | 30 VAC max. | ||||
| AC Frequency | 50 ~ 60 Hz ( > 45 Hz Min.) | ||||
| Input Impedance | 68 kΩ, 1 W | ||||
| Counters |
|
||||
| Photo-Isolation | 5000 Vrms |
Interface
| Interface | RS-485 |
| Format | N, 8, 1 |
| Baud Rate | 1200 ~ 115200 bps |
LED Indicators
| 1 LED as Power/ Communication indicator |
| 8 LEDs as Digital Input indicators |
Protocol
| Support Modbus and DCON Protocol | Yes |
Power
| Input Voltage Range | 10 ~ 30 VDC |
| Power Consumption | 1.0 W |
Omgeving
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 5 ~ 95%, non-condensing |
