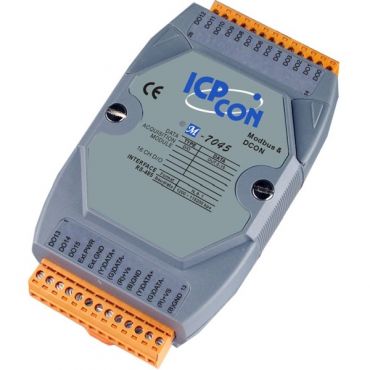

ICPDAS M-7045D
Levertijd:
2~7 dagen
SKU
M-7045D
16-channel Source Type Isolated Digital Output Module with LED Display (Gray Cover)
● Channels: 16
● External Voltage: 10 ~ 40 V max.
● Output current: 650 mA per channel
● Isolation Voltage: 3750 Vrms
● Direct driver power relay module
● Power consumption: 0.5 W
● Short-circuit protection
The M-7000 series is a family of network data acquisition and control modules that support Modbus RTU and DCON protocols. With the Modbus RTU protocol, it can easily communicate with most popular SCADA/HMI software and PLC. It has the same form factor as the I-7000 series.
Art.nr.
M-7045D
Fabrikant
ICPDAS
Digital Output
Channels | 16, Source, NMOS |
Output Voltage | +10 V ~ +40 V |
Output Current | 650 mA per channel, Direct drive power relay module |
Overvoltage Protection | 47 VDC |
Overload Protection | Yes |
Short-circuit and Overcurrent Protection | Yes, 1.4 A |
Thermal Overload Trip Temperature | 150 °C |
4 kV ESD Protection (IEC 61000-4-2) | Yes, contact for each terminal |
Intra-module Isolation, Field to Logic | 3750 Vrms |
Interface
Interface | RS-485 |
Format | N, 8, 1 |
Baud Rate | 1200 ~ 115200 bps |
LED Indicators
1 LED as Power/Communication Indicator |
16 LEDs as Digital Output indicators |
Protocol
Support Modbus and DCON Protocol | Yes |
Power
Input Voltage Range | 10 ~ 30 VDC |
Power Consumption | 1.5 W |
Omgeving
Operating Temperature | -25 °C ~ +75 °C |
Storage Temperature | -40 °C ~ +85 °C |
Humidity | 5 ~ 95%, non-condensing |
