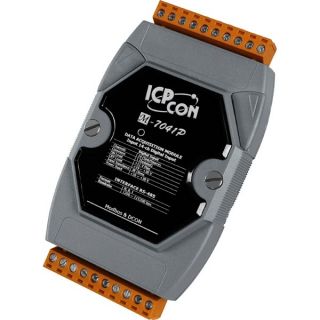

ICPDAS M-7041P

Levertijd:
2~7 dagen
SKU
M-7041P

14-channel Isolated Digital Input Module

● Sink- or Source-type Digital Inputs
● Photocouple Isolation
● All Channels can Be Used As 16-bit Counters
● 4 kV ESD Protection
● 3750 VDC Isolation Voltage
● Built-in Dual Watchdog
● Wide Operating Temperature Range: -25 ~ +75°C
● All Types of On/Off Control
● Industrial Automation
● Industrial Machinery
● Building Automation
● Food and Beverage Systems
● Semiconductor Fabrication
● Control Systems



The I-7041 and I-7041P provide 14 channels for digital input, each of which features photocouple isolation. In addition, either sink- or source-type digital input can be selected via wire connections, and all channels are able to be used as 16-bit counters.

The I-7041D and I-7041PD include 14 LED indicators that can be used for DI channel status monitoring. 4 kV ESD protection and 3750 VDC intra-module isolation are standard.

The hardware specifications for the M-7041 and M-7041P are the same as for the I-7041 and I-7041P, and support both the Modbus RTU and DCON protocols, which can be configured via software. ICPDAS recommends selecting the "P" version of the digital input module for industrial use.

Meer informatie
Art.nr.
M-7041P
Fabrikant
ICPDAS
Digital Input/Counter
Channels 14
Contact Wet
Sink/Source (NPN/PNP) Sink/Source
Wet Contact

On voltage level: +19~30 VDC

Off voltage level: +11 VDC max.

Dry Contact

On voltage level: -

Off voltage level: -

Counters

Max. count: 65535 (16-bit)

Max. input frequency: 100 Hz

Min. Pulse Width: 5 ms

Input Impedance 3 KΩ
Channel-to-Channel Isolation -
Overvoltage Protection +/- 35 VDC
Interface
Interface RS-485
Format N, 8, 1
Baud Rate 1200 ~ 115200 bps
Dual watchdog Yes, Module (1.6 Seconds), Communication (Programmable)
LED Indicators
System LED Indicator Yes, 1 LED as power/communication indicator
I/O LED Indicator -



Protocol
Support Modbus and DCON Protocol Yes
Power
Input Voltage Range 10 ~ 30 VDC
Power Consumption 1.0 W
Omgeving
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -40 °C ~ +85 °C
Humidity 10 ~ 95% RH, non-condensing
