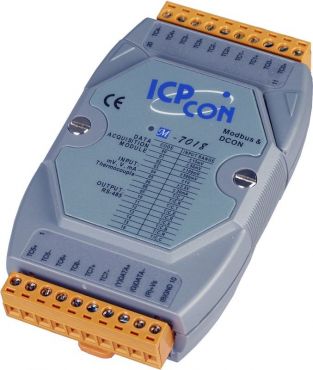

ICPDAS M-7018Z
Levertijd:
2~7 dagen
SKU
M-7018Z
10-channel Thermocouple Input Module
● 3000 VDC Isolated analog input
● 24-bits sigma-delta ADC to provide excellent accuracy
● Thermocouple direct connect with built-in CJC
● Software calibration
● Dual Watchdog
The M-7000 series is a family of network data acquisition and control modules that support Modbus RTU and DCON protocols. With the Modbus RTU protocol, it can easily communicate with most popular SCADA/HMI software and PLC. It has the same form factor as the I-7000 series.
Meer informatie
Art.nr.
M-7018Z
Fabrikant
ICPDAS
Analog Input
| Input Channels | 10 Differential | |||
| Input Type |
|
|||
| Resolution | 16-bit | |||
| Sampling Rate | 10 sample/sec. (Total) | |||
| Accuracy | ± 0.1 % | |||
| -3dB BandWidth | 15.7 Hz | |||
| Zero Drift | ± 0.5 μV/°C | |||
| Span Drift | ± 25 ppm/°C | |||
| Common Mode Rejection | 150 dB | |||
| Normal Mode Rejection | 100 dB | |||
| Input Impedance | >500 kΩ | |||
| Overvoltage Protection | 240 Vrms | |||
| Open Thermocouple Detection | Yes | |||
| Individual Channel Configuration | Yes | |||
| Intra-module Isolation, Field to Logic | 3000 VDC |
Interface
| Interface | RS-485 |
| Format | N, 8, 1 |
| Baud Rate | 1200 ~ 115200 bps |

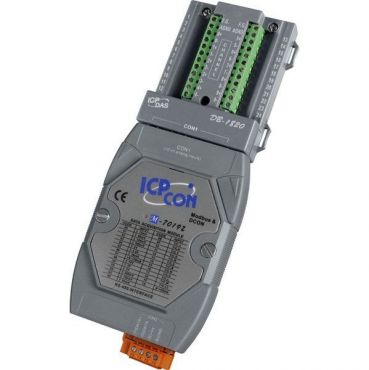

DB-1820
| Wire Strip Length | 4 ~ 5 mm |
| Wire Range | 16 ~ 24 AWG |
DN-1822 (5.08mm ptich)
| Wire Strip Length | 4 ~ 5 mm |
| Wire Range | 14 ~ 24 AWG |
LED Indicators
| LED | Power/ Communication |
Protocol
| Support Modbus and DCON Protocol | Yes |
Power
| Input | +10 ~ +30 VDC |
| Power Consumption | 1.0W |
Omgeving
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 5 ~ 95%, non-condensing |
