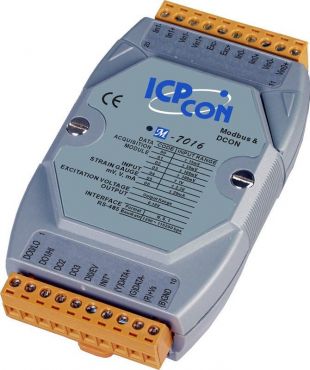

2-channel Strain Gauge Input Module with LED Display

● Resolution: 16-bit
● Channels: 2
● Input type: mV, V and mA
● Input range: ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V, ±20 mA
● Isolation: 3000 V
● Sampling rate: 10 Hz

The M-7000 series is a family of network data acquisition and control modules that support Modbus RTU and DCON protocols. With the Modbus RTU protocol, it can easily communicate with most popular SCADA/HMI software and PLC. It has the same form factor as the I-7000 series.

The ICPDAS Analog Input Module M-7016D is  the latest strain gauge input modules from ICP DAS. Around our surroundings, there are numerous examples of converting force into a measurable electrical output. In most cases, we need a strain gauge type load cell. How are we going to do to make the most use of the electrical output?

The ICPDAS Analog Input Module M-7016D is definitely your #1 choice! The M-7016 series not only process the data from load cells or strain gauges, but also do linear mapping at the same time for intuitive results; by user-defined corespondent table, the M-7016 series convert the data into weight directly!

In the new models, the M-7016 series support both Modbus RTU & DCON protocols.

Meer informatie
Art.nr.
M-7016D
Fabrikant
ICPDAS
Analog Input
Input Channels 2
Input Type ±15 mV, ±50 mV, ±100 mV,± 500 mV , ±1 V,± 2.5 V, ± 20 mA
Resolution 16-bit
Sampling Rate
10 samples/sec. (1-channel mode)
2 samples/sec. (2-channel mode)
Accuracy ±0.05% FSR
Bandwidth 5.24 Hz
Zero Drift ±0.5 uV/ °C
Span Drift 25 ppm/°C
Common Mode Rejection 150 dB
Normal Mode Rejection 100 dB
Overvoltage Protection 10 V (P-P)
Input Impedance 20 MΩ
Intra-module Isolation, Field to Logic 3000 VDC
Excitation Voltage Output
Output Channels 1
Output Range 0 ~ +10V
Max. Output Load 40 mA
Accuracy ±0.05% of FSR
Drift ±50 ppm/ °C
Output Impedance 12 Ω
Isolation 3000 VDC
Digital Input
Channels 1
Logic Level 0 + 1 V max
Logic Level 1 + 3.5 V ~ 30 V
Max. Input Frequency 50 Hz
Min. Pulse Width 1 mS
Digital Output
Channels 4
Output Type Sink, Open collector to 30 V
Output Load 30 mA max per channel
Power Dissipation 300 mW
Interface
Interface RS-485
Format N, 8, 1
Baud Rate 1200 ~ 115200 bps
LED Indicators
Power/Communication
4 ½ Digits
Protocol
Support Modbus and DCON Protocol Yes
Power
Input Voltage Range +10 ~ +30 VDC
Power Consumption 3.0 W
Omgeving
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -40 °C ~ +85 °C
Humidity 5 ~ 95%, non-condensing
