ICPDAS I-7188EG
Levertijd:
2~7 dagen
SKU
I-7188EG

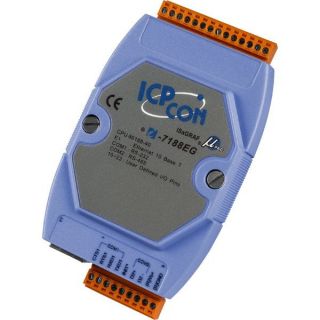

ISaGRAF Embedded Controller with one Ethernet port
● ZigBee Wireless Solution
● Data Acquisition Auto-Report System
● Communication
● Modbus RTU/TCP Slave Ports
● Modbus RTU/ASCII Master Ports
● Multi-Client Connection
● Expansion Boards and Remote I/O Modules
● Data Echange: Fbus & Ebus
● Data Log
● Remotely Download Program: Modem_Link
● PWM: Pulse Width Modulation Output
● Parallel DI Counters
● SMS: Short Message Service
ICPDAS I-7188EG is a palm-size PAC with ISaGRAF SoftLogic. It has one 10 Base-T Ethernet port, one RS-232 port and one RS-485 port. The user can choose I/O expansion board, X-board, to expand COM Ports, I/Os or memories of I-7188EG.
ICPDAS I-7188EG supports Modbus serial protocol, Modbus TCP/IP protocol, Modbus Master protocol, Remote I/O, SMS: Short Message Service, Fbus, Ebus, modem link, MMiCON/LCD and user defined protocol.
Meer informatie
Art.nr.
I-7188EG
Fabrikant
ICPDAS
Land van herkomst
Taiwan
Software
| OS | MiniOS7 |
Development Software
| ISaGRAF v3 | IEC61131-3 standard. Languages: LD, ST, FBD, SFC, IL & FC |
| Max. Code Size | Accepts max.64 KB ISaGRAF code size (Appli.x8m must < 64KB) |
Systeem
| CPU | 80188, 40 MHz, or compatible |
| Watchdog Timer | Yes, default 0.8 second |
| RTC (Real Time Clock) | Provide second, minute, hour, date, day of week, month, year |
| SRAM | 512 KB |
| FLASH Memory | 512 KB, Erase unit is 64 KB, 100.000 erase/write cycles |
| NVRAM | 31 bytes, battery backup, data valid up to 10 years |
| EEPROM | 2048 bytes, retention > 100 years. 1.000.000 erase/write cycles |
| Display | N/A |
| Expansion I/O Bus | One optional X-board series I/O board can be plugged inside the I-7188EG/EGD. |
| NET ID | User-assigned by software, 1 ~ 255 |
Communication Ports
| COM1 | RS-232: TxD,RxD,RTS,CTS,GND. Speed: 115200 bps max. Program downloads port. |
| COM2 | RS-485: D+, D-, 115200 bps max. Self-tuner ASIC inside, Program downloads port. |
| Ethernet | 10 Mbps, NE2000 compatible, 10 Base-T. Programs download port |
PWM Output
| Pulse Width Modulation Output |
|
Counter
| Parallel DI Counter |
|
|||
| Remote DI Counter | All remote I-7000 & I-87K DI modules support counters. 100 Hz max. value: 0 ~ 65535 | |||
| Remote High Speed Counter | Optional I-87082: 100 kHz max. ,32-bit |
Protocol
| Modbus RTU/ASCII Master Protocol | Up to 2 COM Ports (COM1, COM2 and COM3-in-X-board) support Modbus RTU/ASCII Master protocol to connect to other Modbus Slave I/O devices | ||
| Modbus RTU Slave Protocol |
Up to 2 COM Ports (COM1, one of COM2 or COM3-in-X-board) can support Modbus RTU Slave protocol for connecting ISaGRAF, PC/HMI/OPC Server & MMI panels. | ||
| Modbus TCP/IP Protocol |
Ethernet port supports Modbus TCP/IP Slave protocol for connecting ISaGRAF & PC/HMI. | ||
| Remote I/O | One of COM2 (or COM3: RS-485 if found) supports I-7000 I/O modules & (I-87K base or RU-87P4/8 + I-87K serial I/O boards) as Remote I/O. Max. 64 I/O modules for one controller |
||
| Fbus | Built in COM2 Port to exchange data between ICP DAS's ISaGRAF PACs. | ||
| Ebus | To exchange data between ICP DAS's ISaGRAF Ethernet PACs via Ethernet port. | ||
| SMS: Short Message Service |
|
||
| User-defined Protocol | User can write his own protocol applied at COM1, COM2 & (COM3 ~ COM8 if found) by serial communication function blocks. | ||
| Modem Link | Supports PC to remotely download & monitor the controller through COM4 of X504. | ||
| MMICON/LCD | One of (COM3: RS-232 if found) supports ICP DAS's MMICON. The MMICON is featured with a 240 x 64 dot LCD and a 4 x 4 Keyboard. User can use it to display picture, string, integer, float, and input a character, string, integer and float. |
Power
| Input Range | +10 ~ +30 VDC |
| Protection | Power reverse polarity protection |
| Power Consumption | 2.0 W |
Mechanical
| Dimensions (w x l x h) | 123 x 72 x 33mm |
Omgeving
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 °C ~ +80 °C |
| Humidity | 10 ~ 90 % RH (non-condensing) |
Battery Backup SRAM
| I-7188EG/7188EGD can support up to 1024 retain variables with an X607/X608 plug in the only expansion I/O slot. Data can be stored in X607/X608, and then PC can load these data via COM1 or Ethernet. PC can also download pre-defined data to the X607/X608. Optional: X607: 128 KB, X608: 512 KB |
