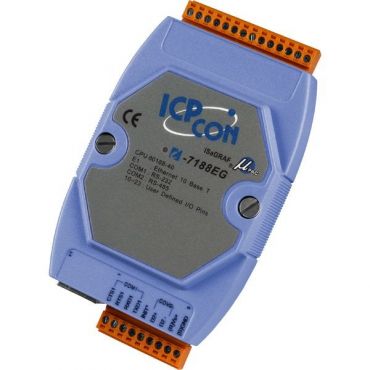

ICPDAS I-7188EGD - ISaGRAF Embedded Controller

Levertijd:
2~7 dagen
SKU
I-7188EGD

ISaGRAF Embedded Controller with one Ethernet port, one RS-232 port,
one RS-485; Including ISaGRAF Target License with LED display

● ZigBee Wireless Solution
● Data Acquisition Auto-Report System
● Communication
● Modbus RTU/TCP Slave Ports
● Modbus RTU/ASCII Master Ports
● Multi-Client Connection
● Expansion Boards and Remote I/O Modules
● Data Echange: Fbus & Ebus
● Data Log
● Remotely Download Program: Modem_Link
● PWM: Pulse Width Modulation Output
● Parallel DI Counters
● SMS: Short Message Service


ICPDAS I-7188EGD is a palm-size PAC with ISaGRAF SoftLogic. It has one 10 Base-T Ethernet port, one RS-232 port and one RS-485 port. The user can choose an I/O expansion board, X-board, to expand COM Ports, I/Os or memories of I-7188EG.

ICPDAS I-7188EGD supports Modbus serial protocol, Modbus TCP/IP protocol, Modbus Master protocol, Remote I/O, SMS: Short Message Service, Fbus, Ebus, modem link, MMICON/LCD and user defined protocol.

Meer informatie
Art.nr.
I-7188EGD
Fabrikant
ICPDAS
Land van herkomst
Taiwan
Software
OS MiniOS7
Development Software
ISaGRAF v3 IEC61131-3 standard. Languages: LD, ST, FBD, SFC, IL & FC
Max. Code Size Accepts max.64 KB ISaGRAF code size (Appli.x8m must < 64KB)
Systeem
CPU 80188, 40 MHz, or compatible
Watchdog Timer Yes, default 0.8 second
RTC (Real Time Clock) Provide second, minute, hour, date, day of week, month, year
SRAM 512 KB
FLASH Memory 512 KB, Erase unit is 64 KB, 100.000 erase/write cycles
NVRAM 31 bytes, battery backup, data valid up to 10 years
EEPROM 2048 bytes, retention > 100 years. 1.000.000 erase/write cycles
Display N/A
Expansion I/O Bus One optional X-board series I/O board can be plugged inside the I-7188EG/EGD.
NET ID User-assigned by software, 1 ~ 255
Communication Ports
COM1 RS-232: TxD,RxD,RTS,CTS,GND. Speed: 115200 bps max. Program downloads port.
COM2 RS-485: D+, D-, 115200 bps max. Self-tuner ASIC inside, Program downloads port.
Ethernet 10 Mbps, NE2000 compatible, 10 Base-T. Programs download port
PWM Output
Pulse Width Modulation Output
All X-board series DO boards support PWM output. 8-channel max. for one controller.
500 Hz max. for Off = 1 & On = 1 ms
Output square wave: Off: 1 ~ 32767 ms, On: 1 ~ 32767 ms
Counter
Parallel DI Counter
All X-board series DI boards support DI counter.
8-channel max. for one controller. Counter value: 32-bit
500 Hz max. Min. pulse width > 1 ms
Remote DI Counter All remote I-7000 & I-87K DI modules support counters. 100 Hz max. value: 0 ~ 65535
Remote High Speed Counter Optional I-87082: 100 kHz max. ,32-bit
Protocol
Modbus RTU/ASCII Master Protocol Up to 2 COM Ports (COM1, COM2 and COM3-in-X-board) support Modbus RTU/ASCII Master protocol to connect to other Modbus Slave I/O devices
Modbus RTU Slave
Protocol
Up to 2 COM Ports (COM1, one of COM2 or COM3-in-X-board) can support Modbus RTU Slave protocol for connecting ISaGRAF, PC/HMI/OPC Server & MMI panels.
Modbus TCP/IP
Protocol
Ethernet port supports Modbus TCP/IP Slave protocol for connecting ISaGRAF & PC/HMI.
Remote I/O One of COM2 (or COM3: RS-485 if found) supports I-7000 I/O modules & (I-87K base or RU-87P4/8 +
I-87K serial I/O boards) as Remote I/O. Max. 64 I/O modules for one controller
Fbus Built in COM2 Port to exchange data between ICP DAS's ISaGRAF PACs.
Ebus To exchange data between ICP DAS's ISaGRAF Ethernet PACs via Ethernet port.
SMS:
Short Message Service
One of COM1, (COM3: RS-232 or COM4: RS-232 if found) can link to a GSM modem to support SMS. User can request data/control the controller by cellular phone. The controller can also send data & alarms to user's cellular phone.
Optional GSM modems: GTM-201-RS232 (850/900/1800/1900 GSM/GPRS External Modem)
User-defined Protocol User can write his own protocol applied at COM1, COM2 & (COM3 ~ COM8 if found) by serial communication function blocks.
Modem Link Supports PC to remotely download & monitor the controller through COM4 of X504.
MMICON/LCD One of (COM3: RS-232 if found) supports ICP DAS's MMICON. The MMICON is featured with a 240 x 64 dot LCD and a 4 x 4 Keyboard. User can use it to display picture, string, integer, float, and input a character, string, integer and float.
Power
Input Range +10 ~ +30 VDC
Protection Power reverse polarity protection
Power Consumption 3.0 W
Mechanical
Dimensions (w x l x h) 123 x 72 x 33mm
Omgeving
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -30 °C ~ +80 °C
Humidity 10 ~ 90 % RH (non-condensing)
Battery Backup SRAM
I-7188EG/7188EGD can support up to 1024 retain variables with an X607/X608 plug in the only expansion I/O slot. Data can be stored in X607/X608, and then PC can load these data via COM1 or Ethernet. PC can also download pre-defined data to the X607/X608. Optional: X607: 128 KB, X608: 512 KB
