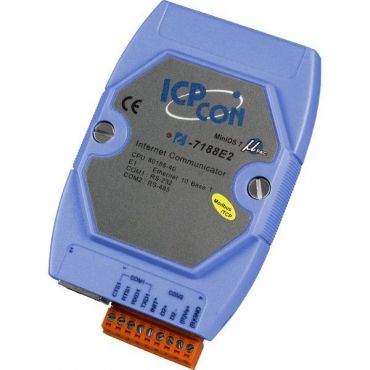

ICPDAS I-7188E2D-MTCP
Levertijd:
2~7 dagen
SKU
I-7188E2D-MTCP
Modbus/TCP Embedded Controller with display (Ethernet enables Modbus commands to run over TCP/IP)
Modbus Firmware Features:
● Supports VxComm technique for every COM port of controllers
● Allowed multi-client (or master) access simultaneously
● Firmware modifiable
Modbus SDK (in C language) Features:
● Supports extra user-defined command protocol (TCP/IP)
● Register based programming method (easy to use)
● Provides user-defined registers
● Can link to Modbus/TCP slave devices
● Can link to Modbus/RTU slave devices
● Can link to non-Modbus/RTU serial devices
● Xserver SDK compatible
Modbus is a highly well-known protocol in industrial manufacturing and environment monitoring fields. It suits master-slave or query-response distributed I/O applications.
With the software development toolkits provided by ICP DAS, users can customize the firmware. The SDK provides rich functions for Modbus communication, such as Modbus/TCP master/slave, Modbus/RTU master/salve, Modbus/ASCII master, etc. Furthermore, by calling relative COM port functions (such as IsCom, ReadCom, ToCom.,etc), you can convert other non-standard protocol to Modbu/TCP or Modbus/RTU. That is to say, the controller can be a protocol converter, too.
APPLICATIONS:
● Basic application 1: protocol converter
● Basic application 2: protocol converter with VxComm technique
● Advanced application 1: Modbus/TCP controller
● Advanced application 2: Modbus/TCP controller with VxComm technique
Meer informatie
Art.nr.
I-7188E2D-MTCP
Fabrikant
ICPDAS
Systeem
| CPU | 80188, 40MHz or compatible |
| SRAM | 384 KB |
| Flash Memory | 512 KB |
| EEPROM | 2 KB |
| Built-in Watchdog Timer | Yes |
Communication Interface
| COM1 | RS-232 (TXD, RXD, RTS, CTS, GND) |
| COM2 | RS-485 (D2+, D2-) |
| Ethernet Port | 10BASE-T NE2000 compatible Ethernet Controller |
COM Port Formats
| Data Bit | 7, 8 |
| Parity | Even, Odd, None |
| Stop Bit | 1 |
LED Indicators
| 5-Digit 7 Segment LED Display | Yes |
| System LED Indicator | Yes |
Power
| Protection | Power reverse polarity protection |
| Required Supply Voltage | +10 ~ +30 VDC (non-regulated) |
| Power Consumption | 3.0 W |
Mechanical
| Dimensions (w x l x h) | 123 x 72 x 33mm |
Omgeving
| Operating Temperature | -25 °C ~ +75 C |
| Storage Temperature | -40 °C ~ +80 °C |
