ICPDAS I-7188EXD-MTCP

Levertijd:
2~7 dagen
SKU
I-7188EXD-MTCP

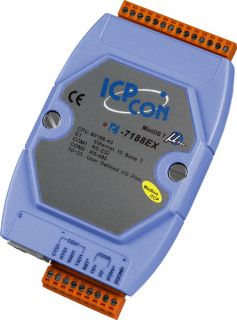

Modbus/TCP Embedded Controller with display (Ethernet enables Modbus commands to run over TCP/IP)

Modbus Firmware Features:
● Converters single Modbus/TCP to multi Modbus/RTU
● Supports VxComm technique for every COM port of controllers
● Allowed multi-client (or master) access simultaneously
● Firmware modifiable

Modbus SDK (in C Language) Features:
● Supports extra user-defined command protocol (TCP/IP)
● Register based programming method (easy to use)
● Provides user-defined registers
● Can Iink to Modbus/TCP slave devices
● Can link to Modbus/RTU slave devices
● Can link to non-Modbus/RTU serial devices
● Supports X boards
● Xserver SDK compatible

Modbus is a highly well-known protocol in industrial manufacturing and environment monitoring fields. It suits master-slave or query-response distributed I/O applications. The Modbus gateway firmware has already been installed in ICPDAS Modbus Gateway I-7188EXD-MTCP units.

Therefore, linked with I-7188EXD-MTCP or uPAC-7186EX-MTCP, PCs or PLCs can use Modbus/TCP or Modbus/RTU protocol to communicate with I/O modules which use Modbus/RTU protocol and link to any COM port of the gateway.



Besides the gateway functionality, the ICPDAS Modbus Gateway I-7188EXD-MTCP unit is also a C language based programmable controllers that is equipped with DOS-like OS (MiniOS7). Users can use C compilers that can create 16 bit executable (*.exe) files to develop a program. After downloading it to the controller, the controller will be able to work stand-alone. There are two free charge version compilers (Turbo C 2.0 and Turbo C++ 1.01), and we suggest users to use the Turbo C++ 1.01.



With the software development toolkits provided by ICP DAS, users can customize the firmware. The SDK provides rich functions for Modbus communication, such as Modbus/TCP master/slave, Modbus/RTU master/salve, Modbus/ASCII master, etc. Furthermore, by calling relative COM port functions (such as IsCom, ReadCom, ToCom.,etc), you can convert other non-standard protocol to Modbu/TCP or Modbus/RTU. That is to say, the controller can be a protocol converter, too.

APPLICATIONS:

● Basic application 1: protocol converter
● Basic application 2: protocol converter with VxComm technique
● Advanced application 1: Modbus/TCP controller
● Advanced application 2: Modbus/TCP controller with VxComm technique

Meer informatie
Art.nr.
I-7188EXD-MTCP
Fabrikant
ICPDAS
Systeem
CPU 80188, 40MHz or compatible
SRAM 512 KB
Flash Memory 512 KB
EEPROM 2 KB
NVRAM 31 Bytes (battery backup, data valid up to 10 year)
RTC (Real Time Clock) Yes
64-bit Hardware Serial Number Yes
Built-in Watchdog Timer Yes
Communication Interface
COM1 RS-232 (TXD, RXD, RTS, CTS, GND)
COM2 RS-485 (D2+, D2-)
Ethernet Port 10BASE-T NE2000 compatible Ethernet Controller
COM Port Formats
Data Bit 7, 8
Parity Even, Odd, None
Stop Bit 1
Hardware Expansion
I/O Expansion Bus Yes
User Defined I/O Pins 14 pins
LED Indicators
5-Digit 7 Segment LED Display Yes
System LED Indicator Yes
Power
Protection Power reverse polarity protection
Required Supply Voltage +10 ~ +30 VDC (non-regulated)
Power Consumption 3.0 W
Mechanical
Dimensions (w x l x h) 123 x 72 x 33mm
Omgeving
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -40 °C ~ +80 °C
