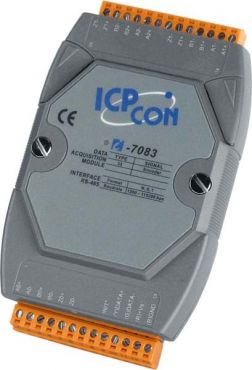

ICPDAS I-7083D

Levertijd:
2~7 dagen
SKU
I-7083D

3-axis, 32 bits encoder counter with LED Display

● Self Tuner Inside
● Multiple Baud Rate
● Multiple Data Format
● Dual Watchdog Inside
● True Distributed Control
● High Speed & High Density I/O

I-7000 is a family of network data acquisition and control modules. They provide analog-to-digital, digital-to-analog, digital input/output, timer/counter and other functions. These modules can be remote controlled by a set of commands.

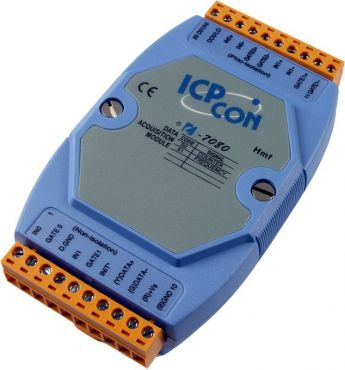

I-7080 is designed to provide signal conditioning system monitoring and safe value settings. I-7080 is a Counter/Frequency Input Module.It is a cost-effective solution for a wide range of valuable industrial control signals and systems. The DCON utility can help users to configure and test I-7080 High Speed Counter / Frequency Input module. Plenty of library functions and demo programs are provided to let users develop programs easily under Windows, Linux and DOS operating systems.

The communication interface is modbus protocol via RS-485. Users may mount the modules on a DIN-Rail, panel or wall. Modules have a screw-terminal block to connect to the signals.

Meer informatie
Art.nr.
I-7083D
Fabrikant
ICPDAS
Counter Input
Channels 3-axis
Input Type Isolated
Encoder Mode Quadrant counting mode, CW/CCW counting mode, Pulse/Dir counting mode
Isolation Voltage Input level 5 V Logic High: 3.5 V ~ 5 V
Logic Low: 0 V ~ 2 V
Input 12 V with external resistor 1 kΩ Logic High: 5 V ~ 12 V
Logic Low: 0 V ~ 2 V
Input 24 V with external resistor 2 kΩ Logic High: 7 V ~ 24 V
Logic Low :0 V ~ 2 V
Maximum Count 32-bit
Maximum counting rate 1 MHz
Interface
Interface RS-485
Format N, 8, 1
Baud Rate 1200 ~ 115200 bps
LED Indicators
1 LED Power/Communication indicator
Power
Input Voltage Range 10 ~ 30 VDC
Power Consumption 1.5 W
Omgeving
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -40 °C ~ +85 °C
Humidity 5 ~ 95%, non-condensing
