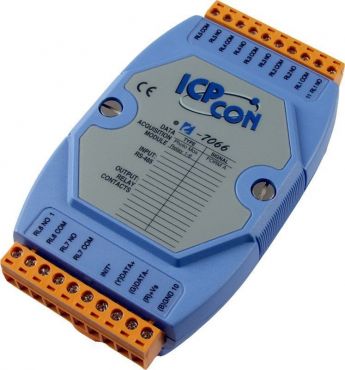

ICPDAS I-7066D

Levertijd:
2~7 dagen
SKU
I-7066D

7-channel PhotoMOS Relay Output Module with LED Display

● 7 Form A PhotoMOS Relays
● Load voltage: 350 V
● Continuous Load current: 0.13 A
● 5000 V Optional Isolation
● Dual Watchdog

I-7000 is a family of network data acquisition and control modules. They provide analog-to-digital, digital-to-analog, digital input/output, timer/counter and other functions. These modules can be remote controlled by a set of commands.

ICPDAS PhotoMOS Module I-7066D is intelligently designed to provide signal conditioning system monitoring and safe value settings. I-7066D is a cost-effective solution for a wide range of valuable industrial control signals and systems. The DCON utility can help users to configure and test I-7066D Digital Output & Isolated Digital Input module.

Plenty of library functions and demo programs are provided to let users develop programs easily under Windows, Linux and DOS operating systems. The communication interface is modbus protocol via RS-485. Users may mount the modules on a DIN-Rail, panel or wall. Modules have a screw-terminal block to connect to the signals.

Meer informatie
Art.nr.
I-7066D
Fabrikant
ICPDAS
Relay Output
Channels 7
Relay Type Form A, PhotoMOS Relay
Continuous Load Current 0.13 A (peak AC)
Peak Load Current 0.4 A
Output Power Dissipation 0.5 W
Output Off State Leakage Current 1 uA
Output On Resistance 23O hms
Load Voltage 350 V (peak AC)
Turn On Time 0.7 ms (typical)
Turn Off Time 0.05 ms (typical)
Photo-Isolation

5000 VAC

Life Time Long life, maintenance free
Interface
Interface RS-485
Format N, 8, 1
Baud Rate 1200 ~ 115200 bps
LED Indicators
1 LED as Power/Communication indicator
7 LEDs as PhotoMOS Relay Output indicators
Power
Input Voltage Range 10 ~ 30 VDC
Power Consumption 0.8 W (max.)
Omgeving
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -40 °C ~ +85 °C
Humidity 5 ~ 95%, non-condensing
