4-channel Isolated Digital Input and 5-channel AC SSR Output Module with 16-bit Counters and LED Display

● Input: 4 single-ended
   ON: Voltage Level: 4 V ~ 30 V
   OFF: Voltage Level: 0 V ~ 1 V
● Input resistance: 3 kΩ
● Output: 5 AC-SSR, Normal open
● Contact rating:
   Load voltage: AC 24 ~ 265 Vrms
   Leakage current: 1.5 mArms
   Max. load current: 1.0 Arms
   Isolation voltage: 3750 Vrms
● Dual Watchdog

I-7000 is a family of network data acquisition and control modules. They provide analog-to-digital, digital-to-analog, digital input/output, timer/counter and other functions. These modules can be remote controlled by a set of commands.

ICPDAS Power Relay Module I-7065AD is intelligently designed to provide signal conditioning system monitoring and safe value settings. I-7065AD is a cost-effective solution for a wide range of valuable industrial control signals and systems. The DCON utility can help users to configure and test I-7065AD AC-SSR relay output module.

Plenty of library functions and demo programs are provided to let users develop programs easily under Windows, Linux and DOS operating systems. The communication interface is modbus protocol via RS-485. Users may mount the modules on a DIN-Rail, panel or wall. Modules have a screw-terminal block to connect to the signals.

Meer informatie
Digital Input
Channels 4
Input Type Sink, Source, isolated channels with common ground or power
On Voltage Level +4 V ~ +30 V
Off Voltage Level +1 V max.
Input Impedance 3 kΩ, 0.5 W
Channels: 4
Max. Counts: 16-bit (65535)
Max. Input Frequency: 100 Hz
Min. Pulse Width: 5 ms
Photo-Isolation 3750 Vrms
SSR AC Output
Channels 5
Relay Type Form "A” relay SPST (N.O.)
Contact Rating
AC: 24 ~ 265 Vrms @1.0 Arms
Max. Load current 1.0 Arms
Min. Load current 10 mArms
Max. Off-State Leakage Current
0.75 mA (at 100 Vrms 60 Hz)
1.50 mA (at 200 Vrms 60 Hz)
Max. On-State Voltage Drop 1.2 Vrms
Operating Time (Max.) 1 ms
Release Time (Min.) 1 ms +½ rms
1 Cycle Surge Current 50 A (60 Hz)
Surge Strength 4,000 VAC
Insulation Resistance 1000 MΩ min. at 500 VDC
Life Time Long life, maintence free
Interface RS-485
Format N, 8, 1
Baud Rate 1200 ~ 115200 bps
LED Indicators
1 LED as Power/Communication indicator
4 LEDs as Digital Input indicators and 5 LEDs as Relay Output indicators
Input Voltage Range 10 ~ 30 VDC
Power Consumption 1.6 W (max.)
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -40 °C ~ +85 °C
Humidity 5 ~ 95%, non-condensing
Mijn vraag gaat over: ICPDAS I-7065AD

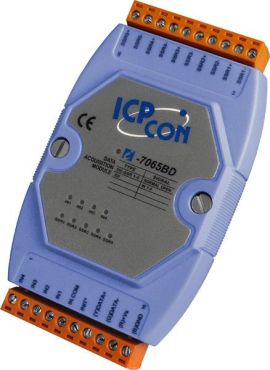

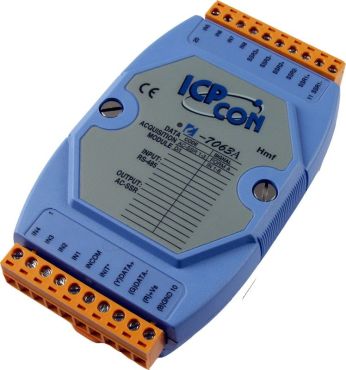

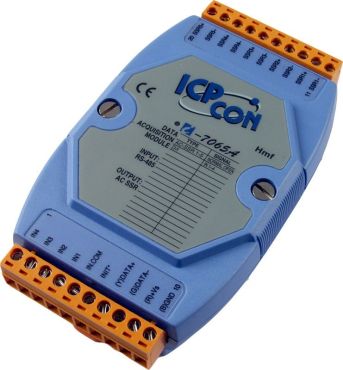

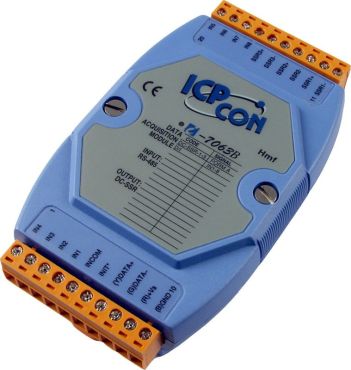

U bent wellicht ook geïnteresseerd in de volgende producten:
