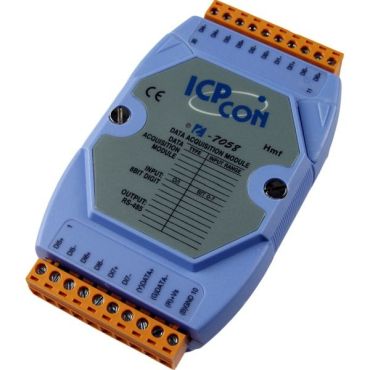

ICPDAS I-7059D
Levertijd:
2~7 dagen
SKU
I-7059D
8-channel 10~80V AC Isolated Digital Input Module with 16-bit Counters and LED Display
● Input Channel: 8 differential
● Operation Voltage: 10 ~ 80 VAC Peak
● ON Voltage Level: 10 VAC min.
● OFF Voltage Level: 3.0 VAC max.
● AC Frequency: 47 ~ 400 Hz (>45 Hz min.)
● Input Impedance: 10 kΩ
● Isolation Voltage: 5000 Vrms
● Power Input: +10 V ~ +30 V
● Power Consumption: 0.3 W max.
● Dual Watchdog
I-7000 is a family of network data acquisition and control modules. They provide analog-to-digital, digital-to-analog, digital input/output, timer/counter and other functions. These modules can be remote controlled by a set of commands.
Meer informatie
Art.nr.
I-7059D
Fabrikant
ICPDAS
Land van herkomst
Taiwan
Digital Input
| Channels | 8 | ||||
| Input Type | AC, Differential, isolated | ||||
| On Voltage Level | 10 ~ 80 VAC | ||||
| Off Voltage Level | 3 VAC max. | ||||
| AC Frequency | 47 ~ 400 Hz (> 45 Hz min) | ||||
| Input Impedance | 10 kΩ, 0.5 W | ||||
| Counters |
|
||||
| Photo-Isolation | 5000 Vrms |
Interface
| Interface | RS-485 |
| Format | N, 8, 1 |
| Baud Rate | 1200 ~ 115200 bps |
LED Indicators
| 1 LED as Power/ Communication indicator |
| 8 LEDs as Digital Input indicators |
Power
| Input Voltage Range | 10 ~ 30 VDC |
| Power Consumption | 1.0 W |
Omgeving
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 5 ~ 95%, non-condensing |
