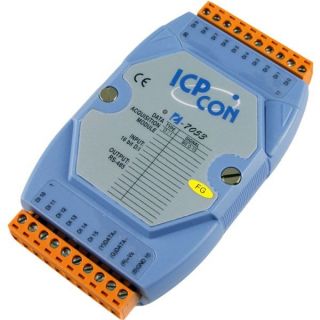

ICPDAS I-7053_FG

Levertijd:
2~7 dagen
SKU
I-7053_FG

16-channel Non-Isolated Digital Input Module with 16-bit Counters

● Input: 16 single-ended
   ON Voltage Level: 4 V ~ 30 V
   OFF Voltage Level: 0 V ~ 2 V
● Dual Watchdog

I-7000 is a family of network data acquisition and control modules. They provide analog-to-digital, digital-to-analog, digital input/output, timer/counter and other functions. These modules can be remote controlled by a set of commands.

ICPDAS Digital Input Module I-7053_FG features long distance measurement for digital input. Its effective distance for dry contact is up to 500 meters.

I-7053_FG supports source type input. All of its 16 channels are also able to be used as 16-bit counters, each of which features non-isolated.



APPLICATIONS:

● Building Automation
● Factory Automation
● Machine Automation
● Remote Maintenance
● Remote Diagnosis
● Testing Equipment

Meer informatie
Art.nr.
I-7053_FG
Fabrikant
ICPDAS
Digital Input
Channels 16
Input Type Dry Contact, Source
On Level Open
Off Level Close to GND
Effective Distance 500 m Max.
Counters
Channel: 16
Max. Counts: 16-bit (65535)
Max. Input Frequency: 100 Hz
Min. Pulse Width: 5 ms
Interface
Interface RS-485
Format N, 8, 1
Baud Rate 1200 ~ 115200 bps
LED Indicators
1 LED Power/Communication indicator
Power
Input 10 ~ 30 VDC
Power Consumption 0.7 W
Mechanical
Dimensions (w x l x h) 72 x 121 x 35 mm
Omgeving
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -40 °C ~ +85 °C
Humidity 5 ~ 95% RH, non-condensing
