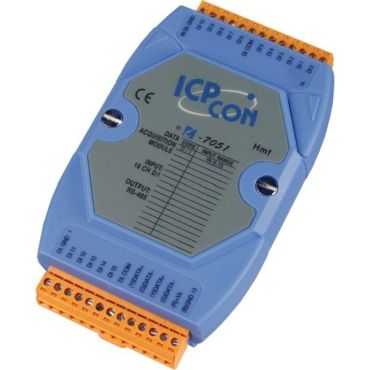

ICPDAS I-7051D

Levertijd:
2~7 dagen
SKU
I-7051D

16-channel Isolated Digital Input Module with 16-bit Counters and LED & display

● Digital Input Channels: 16
● Isolation voltage: 3750 Vrms
● Digital input status:
   Dry contact:
   ON Voltage Level: close to GND
   OFF Voltage Level: Open
   Wet contact:
   ON Voltage Level: +10 V ~ +50 V
   OFF Voltage Level: +3 V max.
● Effective distance for dry contact: 500 m max.
● Dual Watchdog

I-7000 is a family of network data acquisition and control modules. They provide analog-to-digital, digital-to-analog, digital input/output, timer/counter and other functions. These modules can be remote controlled by a set of commands.

ICPDAS Digital Input Module I-7051D offers 16 channels for digital input which cover dry contact and wet contact as well. Its effective distance for dry contact is up to 500 meters. All of its channels are not only with isolation but also able to be used as 16-bit counters.

I-7051D has 16 LED indicators for DI channel status. 4KV ESD protection and 3750 V intra-module isolation are standard.

Meer informatie
Art.nr.
I-7051D
Fabrikant
ICPDAS
Digital Input
Input Channels 16
Input Type Dry Contact (Source), Wet Contact (Sink, Source)
Dry Contact
Off Voltage Level : open
On Voltage Level : close to GND
Effective Distance 500M max. for Dry Contact
Wet Contact
On Voltage Level : +10 V ~ +50 V
Off Voltage Level : +4 V max.
Input Impedance 10 kΩ, 0.5 W
Counters
Channels : 16
Max. Counts: 16-bit (65535)
Max. Input Frequency: 100 Hz
Min. Pulse Width: 5 ms
Overvoltage Protect 70 VDC
Photo-Isolation 3750 Vrms
Interface
Interface RS-485
Format N, 8, 1
Baud Rate 1200 ~ 115200 bps
LED Indicators
1 LED Power/Communication indicator
16 LEDs Digital Input indicators
Power
Input Voltage Range 10 ~ 30 VDC
Power Consumption 1.5 W
Mechanical
Dimensions (w x l x h) 72 x 120 x 35 mm
Omgeving
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -40 °C ~ +85 °C
Humidity 5 ~ 95% RH, non-condensing
