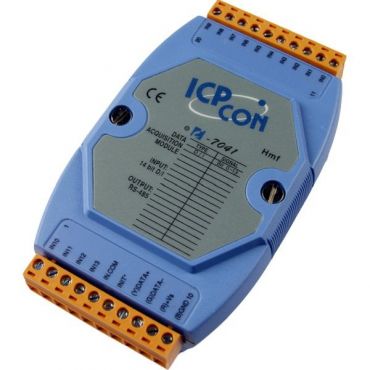

14-channel Isolated Digital Input Module with 16-bit Counters and LED Display

● Input: 14 single-ended
   ON Voltage Level: 4 V ~ 30 V
   OFF Voltage Level: 0 V ~ 1 V
● Isolation voltage: 3750 Vrms
● Input resistance: 3 kΩ, 0.25 W
● Dual Watchdog

I-7000 is a family of network data acquisition and control modules. They provide analog-to-digital, digital-to-analog, digital input/output, timer/counter and other functions. These modules can be remote controlled by a set of commands.

ICPDAS Digital Input Module I-7041D is intelligently designed to provide signal conditioning system monitoring and safe value settings. I-7041D is a cost-effective solution for a wide range of valuable industrial control signals and systems.

The DCON utility can help users to configure and test I-7041D isolated digital Input modules. Plenty of library functions and demo programs are provided to let users develop programs easily under Windows, Linux and DOS operating systems. Users may mount the modules on a DIN rail, panel or wall. Modules have a screw-terminal block to connect to the signals.

Meer informatie
Digital Input
Input Channels 14
Input Type Sink or Source,Isolated channel with common power or ground
On Voltage Level +4 ~ +30 V
Off Voltage Level +1 V Max
Input Impedance 3 kΩ, 0.5 W
Channels : 14
Max. Counts: 16-bit (65535)
Max. Input Frequency: 100 Hz
Min. Pulse Width: 5 ms
Isolation Voltage 3750 Vrms
Interface RS-485
Format N, 8, 1
Baud Rate 1200 ~ 115200 bps
LED Indicators
1 LED as Power/ Communication indicator
14 LEDs as Digital Input indicators
Input Voltage Range 10 ~ 30 VDC
Power Consumption 0.9 W
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -40 °C ~ +85 °C
Humidity 5 ~ 95% RH, non-condensing
