ICPDAS I-7033

Levertijd:
Uit voorraad leverbaar
SKU
I-7033

3-channel RTD Input Module

● 3000 VDC Isolated analog input
● 24-bits sigma-delta ADC to provide excellent accuracy
● Software calibration
● Dual Watchdog
● RTD direct connect
● Input Channel: 3 different
● Sampling rate: 15 Hz (Total)

I-7000 is a family of network data acquisition and control modules. They provide analog-to-digital, digital-to-analog, digital input/output, timer/counter and other functions. These modules can be remote controlled by a set of commands.

ICPDAS Analog Input Module I-7033 is intelligently designed to provide signal conditioning system monitoring and safe value settings. I-7033 is a cost-effective solution for a wide range of valuable industrial control signals and systems.

The DCON utility can help users to configure and test I-7033 RTD Input modules. Plenty of library functions and demo programs are provided to let users develop programs easily under Windows, Linux and DOS operating systems. Users may mount the modules on a DIN-Rail, panel or wall. Modules have a screw-terminal block to connect to the signals.

Meer informatie
Art.nr.
I-7033
Fabrikant
ICPDAS
Analog Input
Input Channels 3
Input Type RTD
Wire Connection 2/3/4 wire
RTD Type Pt100 α=0.00385, Pt100 α=0.003916, Ni120, Pt1000 α=0.00385
Resolution 16-bit
Sampling Rate 15/12.5 samples/sec. while filter at 60/50 Hz
Accuracy ±0.1%
Bandwidth 15.7 Hz
Zero Drift ±0.5 uV/°C
Span Drift ±25 uV/°C
Common Mode Rejection 150 dB min
Normal Mode Rejection 100 dB min
Open Wire Detection Yes
Intra-module Isolation, Field to Logic 3000 VDC
Interface
Interface RS-485
Format N, 8, 1
Baud Rate 1200 ~ 115200 bps
LED Indicators
1 LED Power/Communication
Power
Input Voltage Range +10 ~ +30 VDC
Power Consumption 1.0 W
Omgeving
Operation Temperature -25 °C ~ +75 °C
Storage Temperature -40 °C ~ +85 °C
Humidity 5 ~ 95% RH, non-condensing
Mijn vraag gaat over: ICPDAS I-7033

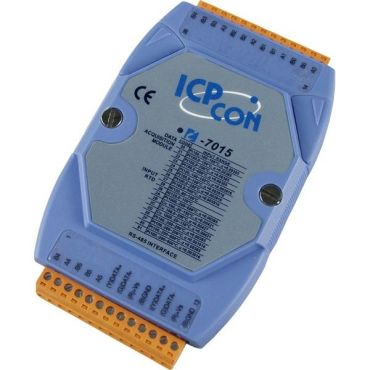

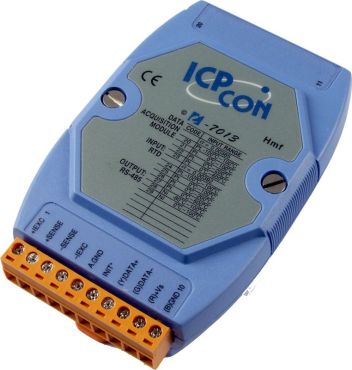

U bent wellicht ook geïnteresseerd in de volgende producten:
