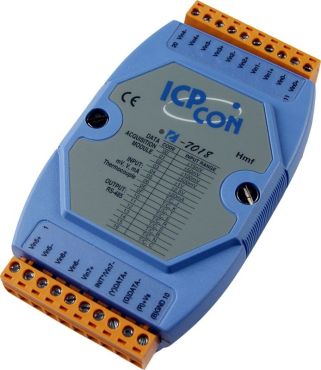

ICPDAS I-7018Z

Levertijd:
2~7 dagen
SKU
I-7018Z

10-channel Thermocouple Input Module with High Voltage Protection

● 3000 VDC Isolated analog input.
● 24-bits sigma-delta ADC to provide excellent accuracy.
● Thermocouple direct connect with built-in CJC
● Software calibration
● Dual Watchdog

I-7000 is a family of network data acquisition and control modules. They provide analog-to-digital, digital-to-analog, digital input/output, timer/counter and other functions. These modules can be remote controlled by a set of commands.

ICPDAS Analog Input Module I-7018Z is a cost-effective solution for a wide range of valuable industrial control signals and systems. It has 4 kV of ESD Protection. The DCON utility can help users to configure and test I-7018R modules.

Plenty of library functions and demo programs are provided to let users develop programs easily under Windows, Linux and DOS operating systems. Users may mount the modules on a DIN-Rail, panel or wall. Modules have a screw-terminal block to connect to the signals.

Meer informatie
Art.nr.
I-7018Z
Fabrikant
ICPDAS
Analog Input
Input Channels 10
Input Type
±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V
±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (Requires Optional External 125 Ω Resistor)
Thermocouple (J, K, T, E, R, S, B, N, C, L, M, LDIN43710)
Resolution 16-bit
Sampling Rate 10 sample/sec. (Total)
Accuracy ± 0.1 %
-3dB BandWidth 15.7 Hz
Zero Drift ± 0.5 μV/°C
Span Drift ± 25 ppm/°C
Common Mode Rejection 150 dB
Normal Mode Rejection 100 dB
Input Impedance >500 kΩ
Overvoltage Protection 240 Vrms
Open Thermocouple Detection Yes
Individual Channel Configuration Yes
Temperature Outputs Consistency Yes
Stable Temperature Output in the Field Yes
Intra-module Isolation, Field to Logic 3000 VDC
Interface
Interface RS-485
Format N, 8, 1
Baud Rate 1200 ~ 115200 bps
DB-1820
Wire Strip Length 4 ~ 5 mm
Wire Range 16 ~ 24 AWG
DN-1822 (5.08mm ptich)
Wire Strip Length 4 ~ 5 mm
Wire Range 14 ~ 24 AWG
LED Indicators
LED Power/Communication
Power
Input +10 ~ +30 VDC
Power Consumption 1.0 W
Omgeving
Operating Temperature -25 °C ~ 75 °C
Storage Temperature -40 °C ~ 85 °C
Humidity 5 ~ 95% RH, Non-condensing
