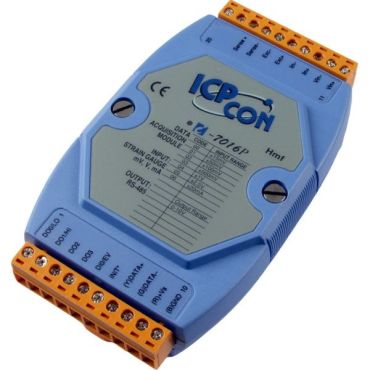

ICPDAS I-7016PD

Levertijd:
2~7 dagen
SKU
I-7016PD

1-channel Strain Gauge Input Module with LED Display (6 wires)

● Channel: 1
● Requires two more cables for remote sensing
● Resolution: 16-bit
● Input type: mV, V and mA
● Input range: ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V, ±20 mA
● Isolation: 3000 V
● Sampling rate: 10 Hz
● Dual Watchdog

I-7000 is a family of network data acquisition and control modules. They provide analog-to-digital, digital-to-analog, digital input/output, timer/counter and other functions. These modules can be remote controlled by a set of commands.

ICPDAS Analog Input Module I-7016PD is a cost-effective solution for a wide range of valuable industrial control signals and systems.

The DCON utility can help users to configure and test I-7016/D/P/PD modules. Plenty of library functions and demo programs are provided to let users develop programs easily under Windows, Linux and DOS operating systems. Users may mount the modules on a DIN-Rail, panel or wall. Modules have a screw-terminal block to connect to the signals.

Meer informatie
Art.nr.
I-7016PD
Fabrikant
ICPDAS
Analog Input
Input Channels 1
Input Type ±15 mV, ±50 mV, ±100 mV, ±500 mV , ±1 V, ±2.5 V, ±20 mA
Resolution 16-bit
Sampling Rate 10 samples/sec.
Accuracy ±0.05% FSR
Bandwidth 5.24 Hz
Zero Drift ±0.5 μV/ °C
Span Drift 25 ppm/°C
Common Mode Rejection 150 dB
Normal Mode Rejection 100 dB
Overvoltage Protection 10 V (P-P)
Input Impedance 20 MΩ
Intra-module Isolation, Field to Logic 3000 Vrms
Excitation Voltage Output
Output Channels 1
Output Range 0 ~ +10V
Resolution 16-bit
Max. Output Load 40 mA
Accuracy ±0.05% of FSR
Drift ±50 ppm/ °C
Output Impedance 12 Ω
Voltage Feedback Yes
Isolation 3000 VDC
Digital Input
Channels 1
Logic Level 0 +1 V max.
Logic Level 1 +3.5 V ~ 30 V
Max Input Frequency 50 Hz
Min. Pulse Width 1 mS
Digital Output
Channels 4
Output Type Sink, Open collector to 30 V
Output Load 30 mA max. per channel
Power Dissipation 300 mW
Interface
Interface RS-485
Format N, 8, 1
Baud Rate 1200 ~ 115200 bps
LED Indicators
1 LED Power/Communication indicator
4 ½ Digits
Power
Input Voltage Range +10 ~ +30 VDC
Power Consumption 3.0 W
Omgeving
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -40 °C ~ +85 °C
Humidity 5 ~ 95% RH, non-condensing
