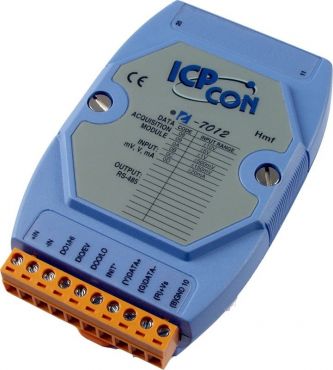

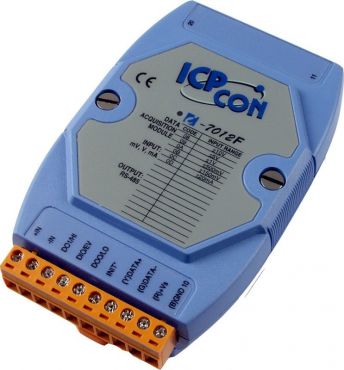

ICPDAS I-7012FD
Levertijd:
2~7 dagen
SKU
I-7012FD
One-Channel High Speed Analog Input Module (12-bit/16-bit)
● Analog with input types: mV, V, mA (requires optional external 125 Ω resistor)
● Input Ranges: ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±20 mA
● Sampling rate: 10 samples/sec.
● Dual Watchdog
I-7000 is a family of network data acquisition and control modules. They provide analog-to-digital, digital-to-analog, digital input/output, timer/counter and other functions. These modules can be remote controlled by a set of commands. The common features of analog input modules are given as follows:
● 3000 VDC Isolated analog input.
● 24-bits sigma-delta ADC to provide excellent accuracy.
● Software calibration
Meer informatie
Art.nr.
I-7012FD
Fabrikant
ICPDAS
Analog Input
| Input Channels | 1 | ||
| Input Type |
|
||
| Resolution | 12-bit (Fast Mode) / 16-bit (Normal Mode) | ||
| Sampling Rate | 100 Samples/Second (Fast Mode) / 10Samples/ Second (Normal Mode) | ||
| Accuracy | ±0.25% or better | ||
| Zero Drift | ±20 uV/°C | ||
| Span Drift | 25 ppm/°C | ||
| Bandwidth | 5.24 Hz | ||
| Common Mode Rejection | 86 dB | ||
| Normal Mode Rejection | 100 dB | ||
| Photo-Isolation | 3750 Vrms | ||
| Intra-module Isolation, Field to Logic | 3000 VDC |
Digital Input
| Channels | 1 |
| Logic Level 0 | +1 V max |
| Logic Level 1 | +3.5 V ~ 30 V |
| Max Input Frequency | 50 Hz |
| Min. Pulse Width | 1 mS |
Digital Output
| Channels | 2 |
| Output Type | Sink, Open Collector to 30 V |
| Output Load | 30 mA max per channel |
| Power Dissipation | 300 mW |
Interface
| Interface | RS-485 |
| Format | N, 8, 1 |
| Baud Rate | 1200 ~ 115200 bps |
LED Indicators
| LED | Power/ Communication |
| Digits | 4½ digits |
Power
| Input | +10 VDC ~ +30 VDC |
| Power Consumption | 1.9 W |
Omgeving
| Operating Temperature | -25 °C ~ 75 °C |
| Storage Temperature | -40 °C ~ 85 °C |
| Humidity | 5 ~ 95% RH, non-condensing |
