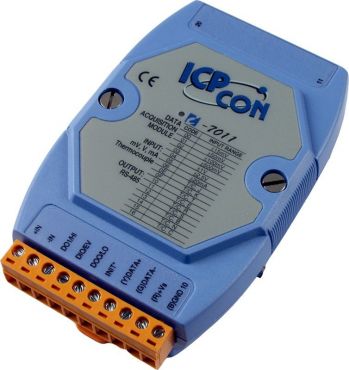

ICPDAS I-7011P
Levertijd:
2~7 dagen
SKU
I-7011P
One-channel Thermocouple Input Module
● 3000 VDC Isolated analog input.
● 24-bits sigma-delta ADC to provide excellent accuracy.
● Thermocouple direct connect with built-in CJC
● Software calibration
● Dual Watchdog
I-7000 is a family of network data acquisition and control modules. They provide analog-to-digital, digital-to-analog, digital input/output, timer/counter and other functions. These modules can be remote controlled by a set of commands.
Meer informatie
Art.nr.
I-7011P
Fabrikant
ICPDAS
Analog Input
| Input Channels | 1 | |||
| Input Type |
|
|||
| Resolution | 16-bit | |||
| Sampling Rate | 10 samples/sec | |||
| Accuracy | ±0.05% | |||
| Zero Drift | ±0.5 uV/°C | |||
| Span Drift | 25 ppm/°C | |||
| Bandwidth | 5.24 Hz | |||
| Common Mode Rejecti | 150 dB | |||
| Normal Mode Rejection | 100 dB | |||
| Input Impedance | 20 MΩ | |||
| Intra-module Isolation, Field to Logic | 3000 VDC |
Digital Input
| Channels | 1 |
| Logic Level 0 | +1 V max. |
| Logic Level 1 | +3.5 ~ 30V |
| Max. Input Frequency | 50 Hz |
| Min. Pulse Width | 1 ms |
Digital Output
| Channels | 2 |
| Output Type | Sink, Open Collector to 30 V |
| Output Load | 30 mA max. per channel |
| Power Dissipation | 300 mW |
Interface
| Interface | RS-485 |
| Format | N, 8, 1 |
| Baud Rate | 1200 ~ 115200 bps |
LED Indicators
| LED | Power/Communication |
Power
| Input | +10 ~ +30 VDC |
| Power Consumption | 0.9 W |
Omgeving
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 5 ~ 95%, non-condensing |
