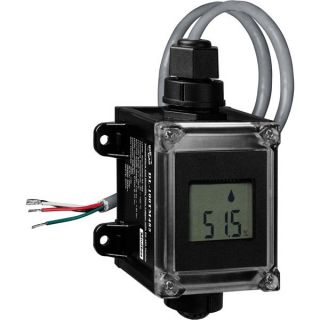

IP66 Remote Temperature and Humidity Data Logger with LCD Display
● Measurement Ranges: -20 ~ +60°';C (-31 ~ +176°F) and 0 ~ 100% RH
● Accuracy: +/-0.4°C (+/-1.0°F) ; +/-3.0% RH
● LCD Display Shows Temperature, Humidity and Module ID
● 10 ~ 30 VDC Power Input
● IP66 Waterproof
● Data Logger Can Store Up to 4088 Temperature and Humidity Records
● RS-485 Communication interface
● DCON or Modbus RTU Protocol
● Windows Software Included

The DL-100T485/DL-100T485-W/DL-100TM485/DL-100TM485-W is a temperature and humidity data logger module. It contains an RS-485 communication interface and an LCD display to show a variety of temperature, humidity and module ID data. The data storage memory can store up to 4088 temperature and humidity records.

The Data Logger Utility is included to allow installation, confi guration, retrieval and display of data in a powerful chart format that can be exported to Excel.


Meer informatie
Humidity & Temperature Sensor
Humidity Range 0 ~ 100% RH (Relative Humidity)
Humidity Resolution 0.1% RH
Humidity Accuracy
Typical: ±3% RH
Max.: Refer to Figure 1
Humidity Repeatability ±0.1% RH
Temperature Range -20 ~ +60 °C
Temperature Resolution 0.1 °C
Temperature Accuracy
Typical: ±0.4 °C
Max.: Refer to Figure 2
Temperature Repeatability ±0.1 °C
Data Logging
Data Storage Capacity 4092 Readings (16000 bytes Memory)
Sampling Frequency 10 seconds to 24 Hours
Recording Mode Stop on memory full or continuous recording with memory rollover
LCD Display
LCD Duty 1/4 (Refer to Figure 3)
LCD Bias 1/3 (Refer to Figure 3)
LCD Operating Voltage 3.0 VDC (Refer to Figure 3)
LCD Operating Frequency 64 Hz (Refer to Figure 3)
Communication Interface
Interface 2-wire RS-485 (DATA+, DATA-); Non-isolation
Baud Rate 9600 bps
Protection Power reverse polarity protection
Required Supply Voltage +10 ~ +30 VDC
Power Consumption ≦ 0.15 W @ 24 VDC
Connection 2-Pin 3.81mm Fixed Connector
Dimensions (w x l x h) 82 x 126 x 55mm
Waterproof Level IP 67
Installation DIN-Rail or Wall Mounting
Operating Temperature -20 °C ~ +60 °C (Protection rating IP67)
Required Supply Voltage -30 °C ~ +80 °C (Protection rating IP67)
Input Impedance 100% RH for Operating Temperature -20 °C ~ +60°C
