Dataq Instruments
Users of Dataq Instruments' hardware and software address the entire spectrum of instrumentation: doctors engaged in life sciences research; engineers from all disciplines; and technicians involved with maintenance and troubleshooting. Throughout this array of users, from the most sterile lab to the grimiest steel mill floor, our equipment can be found. They specialize in replacing chart and X-Y recorders, digital storage oscilloscopes, and other data acquisition systems.
They're the first choice for a variaty of reasons but the dominate ones are ease of use, no-programming environment, and performance.
The fact that no programming is required combined with ease of use allows our customers to set up, record, playback, and analyze waveform data within minutes. But that is not to say our customers are adverse to programming. Many are programmers who need to make a measurement as simply and efficient as possible. They have found that our hardware and especially our software are capable of real time storage and graphical performance unlike any product they've ever seen on a personal computer.
DI-8B41 Analog Voltage Input Module 1 kHz Bandwidth (±1 V ~ ±60 V Input Range)
● Accepts Voltage Level Signals
● High Level Voltage Output
● 1500 Vrms Transformer Isolation
● ANSI/IEEE C37.90.1 Transient Protection
● Input Protected to 240 VAC Continuous
● 100 dB CMR
● 1 kHz Signal Bandwidth
● ±0.05% Accuracy
● ±0.02% Linearity
● Low Drift with Ambient Temperature
● CSA, FM and CE Certifications Pending
● Mix and Match Modules
DI-8B42 2-Wire Transmitter Interface Module (4 mA ~ 20 mA Input Range)
● +12 VDC Loop Supply
● Provides Isolation for Non-Isolated 2-Wire Transmitters
● High Level Voltage Outputs
● 1500 Vrms Transformer Isolation
● ANSI/IEEE C37.90.1 Transient Protection
● Input Protected to 40 VAC Continuous
● 100 dB CMR
● 100 Hz Bandwidth
● ±0.05% Accuracy
● ±0.02% Linearity
● Low Drift with Ambient Temperature
● UL, CSA, FM and CE Certifications Pending
● Mix and Match Module Types
DI-8B45 Frequency Input Module (0 ~ 100 kHz Input Range)
● Accepts Frequency Input Signals 0 ~ 100 kHz
● TTL or Zero-Crossing Signal Inputs
● High Level Voltage Outputs
● 1500 Vrms Transformer Isolation
● ANSI/IEEE C37.90.1 Transient Protection
● Input Protected up to 240 VAC Continuous
● 100 dB CMR
● 70 dB NMR at 60 Hz
● ±0.05% Accuracy
● ±0.02% Linearity
● Low Drift with Ambient Temperature
● UL, CSA, FM and CE Certifications Pending
● Mix and Match Module Types on Backpanel
DI-8B47 Linearized Thermocouple Input Modules (Type J)
● Interfaces to Thermocouple Type J
● Linearizes Thermocouple Signal
● High Level Voltage Outputs
● 1500 Vrms Transformer Isolation
● ANSI/IEEE C37.90.1
● Input Protected to 240 VAC Continuous
● 120 dB CMR
● 70 dB NMR at 60 Hz
● Low Drift with Ambient Temperature
● Accurate CJC -40 °C ~ +85 °C
● CSA, FM, and CE Certifications Pending
● Mix and Match Modules
DI-8B47 Linearized Thermocouple Input Modules (Type K)
● Interfaces to Thermocouple Type K
● Linearizes Thermocouple Signal
● High Level Voltage Outputs
● 1500Vrms Transformer Isolation
● ANSI/IEEE C37.90.1
● Input Protected to 240VAC Continuous
● 120dB CMR
● 70dB NMR at 60Hz
● Low Drift with Ambient Temperature
● Accurate CJC -40°C to +85°C
● CSA, FM, and CE Certifications Pending
● Mix and Match Modules
DI-8B47 Linearized Thermocouple Input Modules (Type T)
● Interfaces to Thermocouple Type T
● Linearizes Thermocouple Signal
● High Level Voltage Outputs
● 1500Vrms Transformer Isolation
● ANSI/IEEE C37.90.1
● Input Protected to 240VAC Continuous
● 120dB CMR
● 70dB NMR at 60Hz
● Low Drift with Ambient Temperature
● Accurate CJC -40°C to +85°C
● CSA, FM, and CE Certifications Pending
● Mix and Match Modules
DI-8B50 Analog Voltage Input Module 20 kHz Bandwidth (±20 mV ~ ±100 mV Input Range)
● Accepts Millivolt and Voltage Level Signals
● High Level Voltage Output
● 1500 Vrms Transformer Isolation
● ANSI/IEEE C37.90.1 Transient Protection
● Input Protected to 240 VAC Continuous
● 100 dB CMR
● Up to 20 kHz Signal Bandwidth
● ±0.10% Accuracy
● ±0.05% Linearity
● Low Drift with Ambient Temperature
● CSA, FM and CE Certifications Pending
● Mix and Match Modules
DI-8B51 Analog Voltage Input Module 20 kHz Bandwidth (±1 V ~ ±60 V Input Range)
● Accepts Millivolt and Voltage Level Signals
● High Level Voltage Output
● 1500 Vrms Transformer Isolation
● ANSI/IEEE C37.90.1 Transient Protection
● Input Protected to 240 VAC Continuous
● 100 dB CMR
● Up to 20 kHz Signal Bandwidth
● ±0.10% Accuracy
● ±0.05% Linearity
● Low Drift with Ambient Temperature
● UL, CSA, FM and CE Certifications Pending
● Mix and Match Modules
Rechargeable Temperature Data Logger
● -20 °C ~ +60 °C Measurement Range
● Stainless Steel (316 grade) case
● Environmental protection to IP67
● Rechargeable lithium-ion battery
● Bi-color status LEDs behind protective glass window
● Mini-USB interface for set-up and data download
● User programmable alarm thresholds
● Immediate and delayed start logging
● Supplied with Windows control software and USB cable
High Temperature Data Logger
● -40 °C ~ +125 °C measurement range
● Stainless Steel case provides extra protection from corrosion, impact and water ingress
● USB Interface for Set-up and Data Download
● User-Programmable Alarm Thresholds
● Immediate and Delayed Logging
● Replaceable high capacity internal Lithium Battery
● IP 67 Protection (totally protected against dust; protected against liquid immersion up to 1m)
Temperature, Humidity, and Dew Point Data Logger
● 0 to +100%RH Measurement Range
● -35 to +80°C Measurement Range
● Dew point automatically calculated from RH and temperature
● USB Interface for Set-up and Data Download
● User-Programmable Alarm Thresholds for %RH and Temperature
● Status Indication via Red and Green LEDs
● Supplied with Replaceable Internal Lithium Battery
Higher accuracy Humidity, Temperature and Dew Point Data Logger
● More accurate than the EL-USB-2
● 0 to +100%RH Measurement Range
● -35 °C ~ +80 °C Measurement Range
● Dew point automatically calculated from RH and temperature
● USB Interface for Set-up and Data Download
● User-Programmable Alarm Thresholds for %RH and Temperature
● Status Indication via Red and Green LEDs
● Supplied with Replaceable Internal Lithium Battery

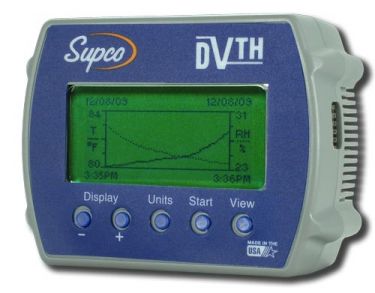

Humidity, Temperature and Dew Point Data Logger with LCD display
● 0 to +100%RH Measurement Range
● -35 to +80°C Measurement Range
● Dew point indication via Windows control software
● USB Interface for Set-up and Data Download
● User-Programmable Alarm Thresholds for %RH and Temperature
● High contrast LCD, with two and a half digit temperature and humidity display function
● Immediate, delayed and push-to-start logging
● Status Indication via Red and Green LEDs
● Supplied with Replaceable Internal Lithium Battery
Higher accuracy Humidity, Temperature and Dew Point Data Logger with LCD display
● More accurate than the EL-USB-2-LCD
● 0 to +100%RH Measurement Range
● -35 ~ +80 °C Measurement Range
● Dew point indication via Windows control software
● USB Interface for Set-up and Data Download
● User-Programmable Alarm Thresholds for %RH and Temperature
● High contrast LCD, with two and a half digit temperature and humidity display function
● Immediate, delayed and push-to-start logging
● Status Indication via Red and Green LEDs
● Supplied with Replaceable Internal Lithium Battery
Voltage Data Logger
● 0-30 VDC Measurement Range
● Logging Rates between 1 second and 12 hours
● Stores 32,510 readings
● Connection via two screw terminals
● USB Interface for Set-up and Data Download
● User-Programmable Alarm Thresholds
● Red and Green LED Status Indication
● Replaceable Internal Lithium Battery
Current Loop Data Logger
● 4-20 mA Current Loop Measurement Range
● Logging Rates between 1 second and 12 hours
● Stores 32,000 readings
● Connection via two screw terminals
● USB Interface for Set-up and Data Download
● User-Programmable Alarm Thresholds
● Red and Green LED Status Indication
● Replaceable Internal Lithium Battery
DI-8B40 Analog Voltage Input Module 1kHz Bandwidth (±10 mV ~ ±100 mV Input Range)
● Accepts Millivolt Level Signals
● High Level Voltage Output
● 1500 Vrms Transformer Isolation
● ANSI/IEEE C37.90.1 Transient Protection
● Input Protected to 240 VAC Continuous
● 100 dB CMR
● 1 kHz Signal Bandwidth
● ±0.05% Accuracy
● ±0.02% Linearity
● Low Drift with Ambient Temperature
● CSA, FM and CE Certifications Pending
● Mix and Match Modules
DI-8B38 Strain Gage Input Module (Wide (8kHz) and Narrow (3Hz) Bandwidth)
● Provides gain and excitation for strain gage-based transducers (load cells, pressure sensors, torque meters, etc.)
● Interfaces to 100Ω Thru 2kΩ Full-Bridge Strain Gages (model dependent)
● High Level Voltage Outputs
● 1500Vrms Transformer Isolation
● ANSI/IEEE C37.90.1 Transient Protection
● Input Protected up to 240VAC Continuous
● 100dB CMR
● 3Hz or 8kHz Signal Bandwidth
● ±0.05% Accuracy
● ±0.02% Linearity
● Low Drift with Ambient Temperature
● UL, CSA, FM and CE Certifications Pending
● Mix and Match Modules
DI-8B38 Strain Gage Input Module (Wide (8kHz) and Narrow (3Hz) Bandwidth)
● Provides gain and excitation for strain gage-based transducers (load cells, pressure sensors, torque meters, etc.)
● Interfaces to 100Ω Thru 2kΩ Full-Bridge Strain Gages (model dependent)
● High Level Voltage Outputs
● 1500Vrms Transformer Isolation
● ANSI/IEEE C37.90.1 Transient Protection
● Input Protected up to 240VAC Continuous
● 100dB CMR
● 3Hz or 8kHz Signal Bandwidth
● ±0.05% Accuracy
● ±0.02% Linearity
● Low Drift with Ambient Temperature
● UL, CSA, FM and CE Certifications Pending
● Mix and Match Modules
