WiFi-500 Sensor Series
Levertijd:
2~7 dagen
SKU
WiFi-500-SS
Low-Cost WiFi Data Logging Sensors
● Wireless temperature and temperature/humidity data logging sensors
● Set up sensor and transmit logged data over WiFi to host computer
● Software-selectable sample rate, data transmission rate, temperature units, and high and low alarms
● Integrated LCD screen displays current readings, min/max readings, high and low alarm occurrences, WiFi signal strength, and battery charge status
● Logs more than 1 million temperature samples and more than 500,000 temperature/humidity samples
● Sensor memory logs and stores data even if temporarily disconnected from WiFi
● Internal lithium polymer battery (rechargeable using included microUSB cable)
● IP55 rating protects main enclosure from dust and water spray
● IP67 rating protects WiFi-501-TP thermistor probe from dust and water immersion
The WiFi-500 Sensor Series of wireless data loggers includes the WiFi-501-TP which measures temperature using a detachable thermistor probe, and the WiFi-502 which measures temperature and humidity.
Both sensors use an existing WiFi network for setup and to transmit logged data to a host computer, minimizing the need to physically collect sensors and connect them to your computer.
WiFi Connectivity
All WiFi-500 Sensor Series devices comply with the IEEE 802.11b WiFi specification, and support bandwidths up to 11 Mbps.
During initial setup, the sensor is connected to the host computer by the included microUSB cable and searches for an existing WiFi network. Once the sensor connects to the network, it can then be placed anywhere within range of the network.
The sensor logs data and transmits logged data wirelessly to the computer used to set up the sensor. You can also change the sensor configuration over the wireless connection.
If the sensor temporarily loses WiFi connectivity, it continues to log readings until it regains communication with the WiFi application. For example, after losing its WiFi connection, a WiFi-500 continues logging data for up to 60 days with a 10 second sample rate setting. To increase the range of the sensor, use WiFi extenders.
Rechargeable Over USB Connection
WiFi-500 Sensor Series devices include a low-powered, rechargeable battery. When set up to use typical sampling rates – such as once every 60 seconds – the sensor operates for over one year. The battery can be recharged using the included USB lead connecting it to a computer or to a USB 5 V wall adapter. The battery is safely charged when the unit is operating between 0 °C to 40 °C (32 °F to 104 °F). It is protected against charging outside this temperature range. Sensor readings may be inaccurate during battery charging.
Sleep Mode for Battery Optimization WiFi-500 Sensor Series devices include a sleep mode feature to optimize battery performance. Connected sensors automatically go into sleep mode when the WiFi software is not running. Each sensor turns off its transmitter, then wakes up every 15 minutes to check if the EasyLog WiFi software is running again.
Each sensor continues to log data to its onboard memory while in sleep mode. When they detect that the software is running again, sensors reconnect and transmit all data stored in their memory to the computer.

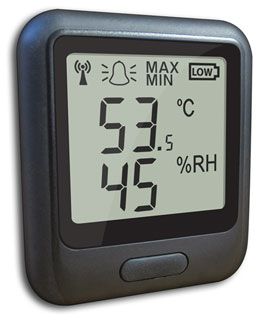

Real-Time LCD Screen
WiFi-500 Sensor Series devices feature a built-in high-contrast LCD screen for real-time display of data. Users can press the button on the sensor to cycle through the different screens that display.
EasyLog WiFi Software
The EasyLog WiFi software for use with WiFi-500 Sensor Series devices is available as a free download. This easy-to-use software application allows users to set up a WiFi connection, set the sampling rate and WiFi data transmission rate, and set alarms and temperature scale.
Both sensors use an existing WiFi network for setup and to transmit logged data to a host computer, minimizing the need to physically collect sensors and connect them to your computer.
WiFi Connectivity
All WiFi-500 Sensor Series devices comply with the IEEE 802.11b WiFi specification, and support bandwidths up to 11 Mbps.
During initial setup, the sensor is connected to the host computer by the included microUSB cable and searches for an existing WiFi network. Once the sensor connects to the network, it can then be placed anywhere within range of the network.
The sensor logs data and transmits logged data wirelessly to the computer used to set up the sensor. You can also change the sensor configuration over the wireless connection.
If the sensor temporarily loses WiFi connectivity, it continues to log readings until it regains communication with the WiFi application. For example, after losing its WiFi connection, a WiFi-500 continues logging data for up to 60 days with a 10 second sample rate setting. To increase the range of the sensor, use WiFi extenders.
Rechargeable Over USB Connection
WiFi-500 Sensor Series devices include a low-powered, rechargeable battery. When set up to use typical sampling rates – such as once every 60 seconds – the sensor operates for over one year. The battery can be recharged using the included USB lead connecting it to a computer or to a USB 5 V wall adapter. The battery is safely charged when the unit is operating between 0 °C to 40 °C (32 °F to 104 °F). It is protected against charging outside this temperature range. Sensor readings may be inaccurate during battery charging.
Sleep Mode for Battery Optimization WiFi-500 Sensor Series devices include a sleep mode feature to optimize battery performance. Connected sensors automatically go into sleep mode when the WiFi software is not running. Each sensor turns off its transmitter, then wakes up every 15 minutes to check if the EasyLog WiFi software is running again.
Each sensor continues to log data to its onboard memory while in sleep mode. When they detect that the software is running again, sensors reconnect and transmit all data stored in their memory to the computer.
Real-Time LCD Screen
WiFi-500 Sensor Series devices feature a built-in high-contrast LCD screen for real-time display of data. Users can press the button on the sensor to cycle through the different screens that display.
EasyLog WiFi Software
The EasyLog WiFi software for use with WiFi-500 Sensor Series devices is available as a free download. This easy-to-use software application allows users to set up a WiFi connection, set the sampling rate and WiFi data transmission rate, and set alarms and temperature scale.
Meer informatie
Art.nr.
WiFi-500-SS
Fabrikant
Measurement Computing
Algemeen
| Channels | WiFi-501-TP: WiFi-502: |
1 2 |
| Measurement Type | WiFi-501-TP: WiFi-502: |
Temperature Temperature, humidity |
| Sampling Rate | WiFi-501-TP: WiFi-502: |
10 s to 12 hr 10 s to 12 hr |
| Data Transmission to Computer | WiFi-501-TP: WiFi-502: |
every sample to every 100 samples every sample to every 100 samples |
| Memory | WiFi-501-TP: WiFi-502: |
500 K samples 1 M samples |
| Features | WiFi-501-TP: WiFi-502: |
detachable thermistor probe - |
