DURABOOK TA10 Rugged Tablet
DURABOOK RUGGED TABLET
● MIL-STD 810G for drop up to 152 cm height
● 10.4 Inch Sunlight Readable Dispay 700 NITs
● MIL-STD 810G and ASTM D4169-08 for vibration
● MIL-STD 810G for Salt and Fog
● MIL-STD 810G for Temperature Shock
● Operating Humidity: 5% ~ 95%
● Compliant with IP65 for water and dust
● MIL-STD 461F certified
● Sealed I/O Ports
● Wide Temperature Range: Operating: -20℃~ +60℃
● Intel® Core™ i5-3337U
● Up to 10 hours of operation
● Windows 7 Professional

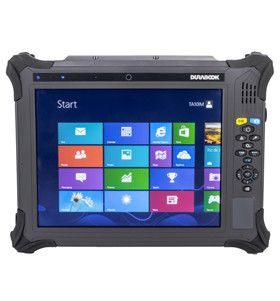

Twinhead Durabook TA10
Full Rugged Tablet PC
The Twinhead DURABOOK TA10 is a 10.4” fully-rugged tablet PC designed for military field, public safety, emergency service, transportation and field service. With IP65 and MIL-STD-810G ratings, the Twinhead TA10 is capable of surviving 5-foot drops, salt fog exposure, vibration in helicopter level, and is able to work under wide temperature and humidity environment. The TA10 is also compliant with MIL-STD-461F for military force. By adopting power-saving components and power management, the Twinhead TA10 provides up to 10 hours of battery life with two hot-swappable battery packs, an ideal feature for mobile workers.
Rugged Features:
● MIL-STD 810G for drop up to 5 feet (152.4 cm) height
● MIL-STD 810G and ASTM D4169-08 for vibration
● MIL-STD 810G for Salt and Fog
● MIL-STD 810G for Temperature Shock
● Operating Humidity: 5% ~ 95%
● Compliant with IP65 for water and dust
● MIL-STD 461F certified
● Wide Temperature Range: Operating: -20℃~ +60℃/ Storage: -51℃~ +71℃
Performance Features:
● Intel® Core™ i5-3337U
● Windows 7 Professional
Display Features:
● 10.4” XGA Resistive Touch Panel with tempered glass
● Sunlight Readable Display 700 nits
● G-Sensor supporting display Auto-Rotation
● Support G-Sensor, Gyroscope, E-Compass
● Ambient Light Sensor
Community Capability:
● Intel Centrino Wireless N6235 delivers premium WiFi performance (802.11 a/b/g/n)
● Bluetooth 4.0 Class 1 technology with low-energy, low-latency benefits and longer range of distance
● Optional Integrated 4G / LTE Modem
● Optional Integrated GPS Module
Data Collection Capability:
● Front facing 1.3MP camera ; optional rear facing 5MP auto-focus camera
● Optional 1D & 2D Barcode Scanner
● UHF RFID Reader
● Optional Fingerprint scanner with FIPS201** certified
**FIPS 201 stands for the Federal Information Processing Standards Publication 201. FIPS 201 specifies Personal Identity Verification (PIV) requirements for federal employees and contractors.
Security Features:
● Support Intel vPro technology with QM77
● Computrace ready
● Kensington Lock
● TPM1.2
Ultra Long Battery Life!
● Up to 10 hours of operation
● Hot-Swappable batteries
● Ambient Light Sensor auto-adjust LCD brightness to increase battery efficiency
Drop
- MIL-STD 810G 516.6 Procedure IV, 26 drops from 5 feet height onto plywood over concrete
Vibration
- MIL-STD 810G 514.6 Procedure I Cat. 24, Fig 514.6E-1-2
- ASTM 4169-08 Truck Assurance Level II, Schedule E
Salt and Fog
- MIL-STD 810G, Method 509.5
Compliant with MIL-STD 461F
Tempered Glass LCD Display
Optional mSATA SSD 64 / 128 / 256 GB
● Resistive Touch Screen Panel with Tempered Glass
● Ambient Light Sensor
● Built in G-sensor for display auto-rotation
● Optional Sunglight Readable 700 nits Display
**Support 1D/2D bar code reading, Angle: 38.9° (Horizontal), 25.4°(Vertical)
● Optional UHF RFID Reader, support ISO 18000-6C
● Optional FIPS Fingerprint Scanner
● Optional Smart Card Reader
● One PCMCIA TypeII
● Optional Smart Card Reader
● Mini USB2.0 x 1
● RS232 x 1
● RJ 45 x 1
● DC-in
● Docking Connector
● Optional RF connector for external WWAN and GPS antennas
● Intel® Centrino® Advanced-N 6235 (802.11 a/b/g/n)
● Bluetooth 4.0 Class 1
● Optional Gobi 3000 or LTE WWAN
● Optional GPS
● Optional G-sensor/ Gyroscope / E-compass
● TPM 1.2
● Kensington Lock
● Optional FIPS Fingerprint Scanner
● Optional Smart Card Reader
● Optional Secondary hot swap 5200mAh battery pack1
● Total battery life with dual battery packs: 10 hrs
● 100V - 240V; 65W AC Adapter/Charger
● 2.3 kg
Storage temp: -55°C to 71°C
Humidity: 5% to 95% RH, non-condensing
