RVD-104

Levertijd:
8~12 weken
SKU
RVD-104

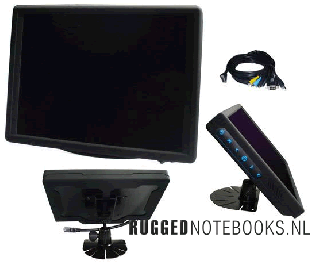

10.4" XGA Vehicle Touch Display

● Ultra-low power LED backlight
● Sunlight readable
● Automatic backlight dimmer
● Autopower on/off by VGA/HDMI signal
● One composite video input with mirror option
● Power 6-36V, meets car/truck requirements
● Ultra low power consumption
● Wide temperature range
● Shock/Vibration proof
● Aluminium chassis

RVD-104
full rugged vehicle touch display



10.4" Full Rugged Monitor, XGA resolution, AFFS+ technology (transflective) with 700 nits and up to 1200 nits brightness. The rugged chassis design makes it perfect for harsh environments as Vehicle fleet management terminal.

The RVD-104 includes a high featured controller including automatic and manual back- light adjustment, depending of the ambient light, which makes it suitable for applications from the darkest night (NVIS) to the bright sunlight. The RVD-104 includes a resistive touch panel with USB controller, adding full interactivity.

The RVD-104 is available with VGA orHDMI and Audio input as standard, Composite input with autopower/autoswitch.
All inputs are available on the “all in one cable”, minimizing the time and cost for the installation and mainteniance, plus it includes a lockable connector for an easy and quick connection.

Meer informatie
Art.nr.
RVD-104
Fabrikant
Datalux
Land van herkomst
China
Rugged Features
Drop: 10cm max. (1cm collision to display area)
Vibration: 1G 2-500Hz
Shock: 20G 11ms
Aluminium chasis/rear. PVC-ABS front.
Scherm
10.4" XGA
256k Colors
Resistive Type of Touch Screen
4:3
support VGA Modes 640x480 to 1920x1440px
Pointing Device
Resistive Type of Touch Screen
I/O Ports
VGA
Camera Input
USB Touch Screen Audio
Communication Interface
USB Touch Screen
Beveiliging
CE
e-mark
Power
6-36Vdc
8 Watt
Dimensions & Weight
183x125x31mm
1 kg
Environmental Spec
Storage temperature: -30ºC to 80ºC Operation temperature: -20ºC to 60ºC
RVD-104 aanpassen
10.4" XGA (1024 x 768) Vehicle Display, Direct Sunlight readable: 1000 NITs (cd/m²) Touch Display, with auto brightness sensor, cable length 4.5 meter
