RuggVMC VX-601

Levertijd: 4-6 Weken

Kenmerken

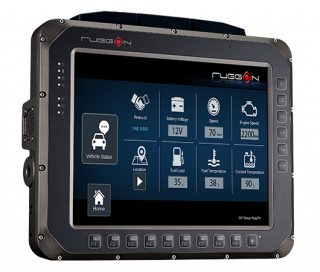

MOBILE DATA TERMINAL


● 12.1" Sunlight Readable Display with Resistive Touchscreen
● The high brightness display supports auto-dimming and defroster
● Extremely sturdy design to conquer tough task
● Health readiness via SAE J1939/ OBDII
● Rich I/O design for maximum utilization
● Smart power management with ignition sense and backup battery

Details

RUGGON VX-601       Intel Processor500 Nits Sunlight Readable DisplaySAE J1939Wide DC-INDefrostSaltfog

12.1” Rugged In-Vehicle Terminal

VX-601 gives the finest balance of tough and performance for intralogistics and cold chain logistics.

 RuggON Rugg VMC VX-601
 RuggON Rugg VMC VX-601

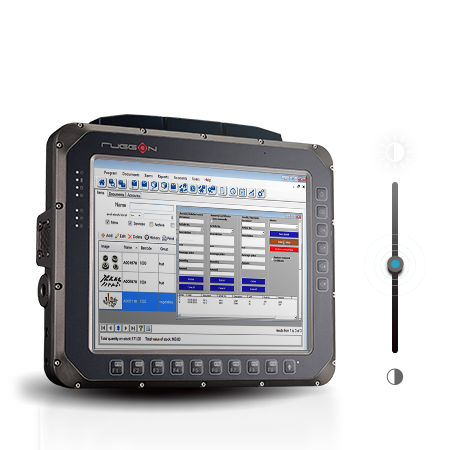

Underline the visibility of outdoor

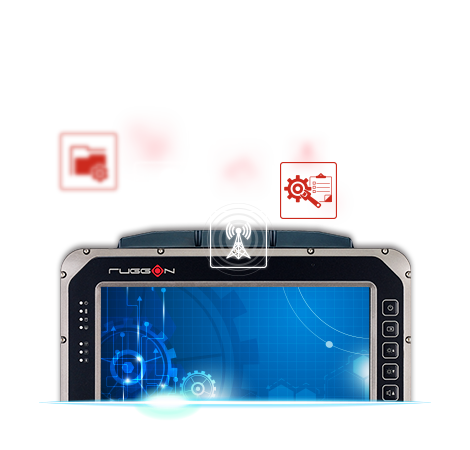

Using the latest Wi-Fi standard 802.11 ac, VM-521 provides faster processing, broader coverage, more stable and efficient transmission. Moreover, it offers higher capacity for networking of more devices to simultaneously transfer data.

Ready for challenge

The VX-601 is built from the ground up for durability and reliability, with IP66 (IEC 60529), MIL-STD-810G and IEC 60721-3-5 Class 5M3 compliance. This impressive durability with the optional defroster function makes handling easier and more adaptable to work in challenging conditions. On demand, the screen is also operable with gloves.

 RuggON Rugg VMC VX-601
 RuggON Rugg VMC VX-601

DashON - Click to activate

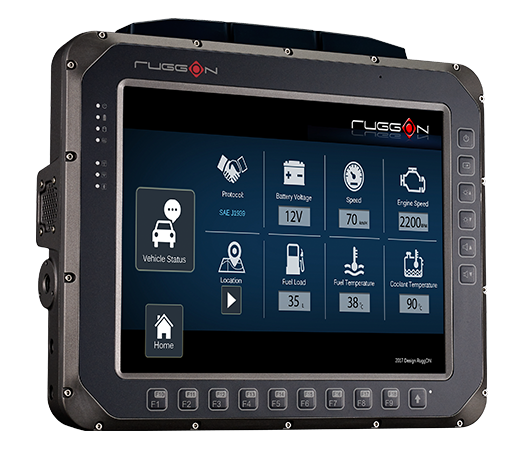

DashON is the RuggON management software that gives you access to a wide range of configuration settings via user-friendly interface. Besides device information, DashON features, vehicle status, communication setting, system status setting, power management and GPS configuration setting. The corresponding SDK is also provided for your application development.

Maximum efficiency

Extensive I/O features and dedicated function buttons come together for field operations, which not only ensure an incomparable output, but also maximum efficiency. Waterproofed external connectors are available for the most challenging conditions.

 RuggON Rugg VMC VX-601





Specificaties

Artikelnummer VX601
Fabrikant RuggON
Operating System Windows 10, Windows 7
Rugged Features IEC 60529 IP66
Vibration (operating) : MIL-STD-810G, Method 514.7 c2/c3/c4, IEC 60721-3-5 class 5M3
Shock (operating) : MIL-STD-810G, 40G at 11ms Terminal / Sawtooth
Salt fog : MIL-STD-810G, Change 1, Method 509.6
Operating temperature : -30°C to +55°C
CPU Intel® Core™ i5 6300U 2.4 GHz
optional Intel® Celeron® 3955U 2.0 GHz
Memory 4GB DDR3L up to 8GB DDR3L
Storage

64GB SSD
Optional:
- 128GB

VGA Controller Intel® HD Graphics
Scherm 12.1-inch 1024 x 768 XGA
700 nits / 1200 nits brightness, support auto-dimming
5-wire resistive touch, optional defroster function
PCT by request
Pointing Device 5-wire resistive Touchscreen
- Capacitive multi-touch (PCT) by request
I/O Ports Gigabit RJ45 x 1
RS-232 with power supported x 1
RS-232/422/485 x 1
USB 2.0 x1, USB 2.0/ 3.0 x 1
CAN bus (SAE J1939 / OBD II supported) x 1
GPIO x 2
Audio headset jack x 1
Optional video input x 4
DC-in x 1
Communication Interface Wi-Fi 802.11 a/b/g/n/ac
Bluetooth V4.0 Class 2
Optional GNSS (GPS /QZSS or GLONASS)
Optional 4G LTE / GPRS / HSPA+
Power 9~60 VDC input
Ignition sense with delay on/off setting
Remote power on, wake on SMS / RTC
UPS backup battery (10.8V, 4500 mAhr)
Dimensions & Weight 325 x 262 x 67.3 mm
4.6kg
Environmental Spec IEC 60529 IP66
Vibration (operating) : MIL-STD-810G, Method 514.7 c2/c3/c4
IEC 60721-3-5 class 5M3
Shock (operating) : MIL-STD-810G, 40G at 11ms Terminal / Sawtooth
Salt fog : MIL-STD-810G, Change1, Method 509.6
Operating temperature : -30°C to 55°C

Configureren

Getac F110 - Fully Rugged Tablet

RuggVMC VX-601 Mobile Data Terminal / Standard Configuration:

● Intel Processor
● 12.1 Inch LCD
● Sunlight readable solution, auto dimming support
5-wire resistiveTouch
● 4GB RAM
● 64GB SSD
● RS232 x1, RS232/422/485 x1, GPIO/CAN Bus x2, LAN
● Built-in 3-axis G-sensor & light sensor
● IEC 60529 IP66
● DC-In: 9~60VDC
● Internal Battery Pack; 4500mAhr, 10.8V, 48.6Wh

● -30°C ~ 55°C operating temperature
● Windows 10
