RuggVMC VM-521

Levertijd: 4-6 Weken

Kenmerken

MOBILE DATA TERMINAL





● 1000 nits high brightness display supports defroster
● IEC 60529 IP66, MIL-STD-810G
● Smart power management with wide range DC power input
● SAE J1939 / OBDII supports fleet management applications
● Industrial communications for field use
● Optional video surveillance function




Details

RUGGON VM-521       Intel Processor500 Nits Sunlight Readable DisplaySAE J1939Wide DC-IN

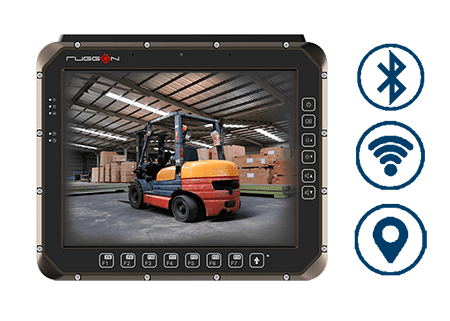

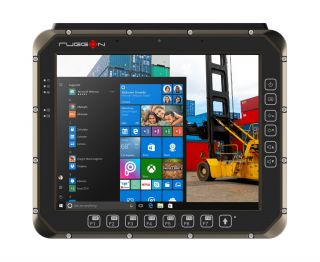

10.4” Rugged In-Vehicle Terminal

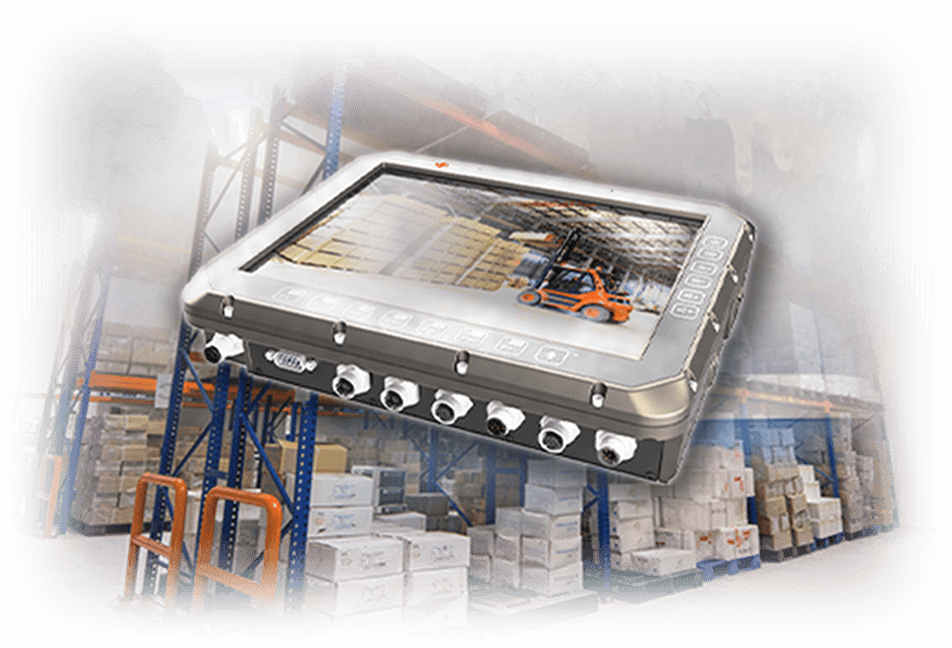

Offering best-in-class ruggedness and functionality, VM-521 is class-leading vehicle mount computer on the market.

 RuggON Rugg VMC VM-521
 RuggON Rugg VMC VM-521

The Next Generation of Wi-Fi

Using the latest Wi-Fi standard 802.11 ac, VM-521 provides faster processing, broader coverage, more stable and efficient transmission. Moreover, it offers higher capacity for networking of more devices to simultaneously transfer data.

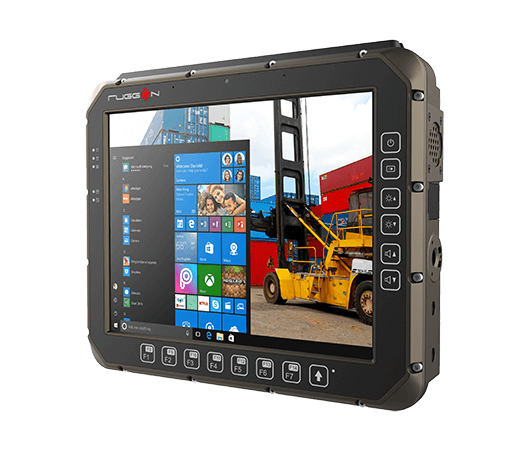

Superb Visibility Anytime, Anywhere

Featuring 1000 nits truly sunlight readable display, VM-521 offers superb viewability even in direct sunlight. With brightness adjustable button, providing a widest brightness adjustable display to meet dim-to-black requirement. A best-in-class visibility makes VM-521 ideal for day and night operations.

 RuggON Rugg VMC VM-521
 RuggON Rugg VMC VM-521

Optimal Power Design of Vehicle Application

In order to fulfill diversified vehicle power requirements, VM-521 provides two types of wide range power modules – 9 to 32 VDC and 18 to 60 VDC. Moreover, battery built-in design protects VM-521 from unstable power input during the vehicle operation.

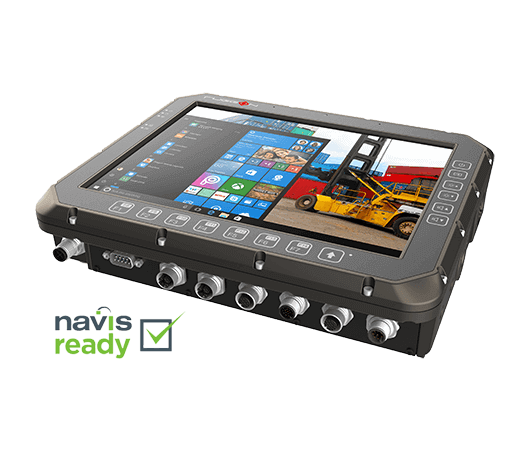

Industrial Communications for Field Use

With gigabit LAN, USB, digital I/O, COM and CAN ports, VM-521 is truly designed for field operators.

 RuggON Rugg VMC VM-521





Specificaties

Artikelnummer VM521
Fabrikant RuggON
Operating System Windows 10, Windows 8 Embedded, Windows 7 Embedded
Rugged Features IEC 60529 IP66
Vibration (operating) : MIL-STD-810G, Method 514.7 c2/c3/c4, IEC 60721-3-5 class 5M3
Shock (operating) : MIL-STD-810G, 40G at 11ms Terminal / Sawtooth
Salt fog : MIL-STD-810G, Change 1, Method 509.6
Operating temperature : -30°C to +55°C
CPU Intel® Atom™ E3845 1.91 GHz
optional Intel® Atom™ E3827 1.75 GHz
Memory 4GB DDR3L up to 8GB DDR3L
Storage

64GB SSD
Optional:
- 128GB

VGA Controller Intel® HD Graphics
Scherm 10.4-inch 1024 x 768 XGA
1000 nits brightness
5-wire resistive touch, optional defroster function
Pointing Device 5-wire resistive Touchscreen
I/O Ports Gigabit RJ45 x 2
RS-232 x 3 (COM1 with power supported)
USB 2.0 x 2
CAN bus (SAE J1939 / OBD II supported)
GPIO x 4
Audio output jack x 1, Line-in / MIC jack x 1
Optional video input x 4
DC-in x1
Communication Interface Wi-Fi 802.11 a/b/g/n/ac
Bluetooth V4.0 Class 2
Optional 4G LTE / GPRS / HSPA+
Optional GNSS (GPS / QZSS or GLONASS)
Power 9~32 VDC input, optional 18~60 VDC
Optional ignition sense
Remote power on, wake on SMS / RTC
UPS backup battery, 7.5V, 2900 mAh
Dimensions & Weight (W x H x D) : 276 x 252 x 67.3 (mm)
3.8kg
Environmental Spec IEC 60529 IP66
Vibration (operating) : MIL-STD-810G, Method 514.7 c2/c3/c4, IEC 60721-3-5 class 5M3
Shock (operating) : MIL-STD-810G, 40G at 11ms Terminal / Sawtooth
Salt fog : MIL-STD-810G, Change 1, Method 509.6
Operating temperature : -30°C to +55°C

Configureren

Getac F110 - Fully Rugged Tablet

RuggVMC VM-521 Mobile Data Terminal / Standard Configuration:

● Intel Atom E3827 1.75GHz (Bay Trail)
● 10.4-inch XGA TFT LCD with LED backlight (1024 x 768)
● 1000 nits brightness supports defroster function
5-wire ResistiveTouch
● 4GB RAM
● 64GB SSD
● RS232 x1, RS422/485 x1, CAN Bus 2.0b  x1, LAN x2
● Built-in 3-axis G-sensor & light sensor
● IEC 60529 IP66
● DC-In: 9~36VDC
● Internal Battery Pack; 3000mAh, 7.4V

● -30°C ~ 55°C operating temperature
● Windows 10
