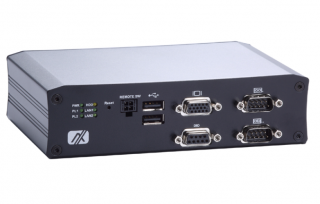

Axiomtek tBOX810-838-FL
Levertijd:
3~4 weken
SKU
tBOX810-838-FL
Fanless Embedded System with Intel® Atom™ Processor E3845/E3827 for Vehicle, Railway and Marine PC
● eMark, ISO7637, EN50155, EN50121 and IEC60945 certifications
● Designed especially for in-vehicle, railway and marine fields
● Intel® Atom™ E3845 [email protected] or Intel® Atom™ E3827 [email protected] GHz (codename: Bay Trail)
● DDR3 4 GB system memory onboard
● Fanless with wide operating temperature range of -40°C ~ +70°C (EN50155 class TX)
● Intelligent power management solution
● Compact size with rich I/Os
● DIN rail and wall mount supported
● 2 full-size PCI Express Mini Card slots, 1 SIM card socket for various applications
The tBOX810-838-FL fanless box PC is certified with eMark, ISO7637, EN50155, EN50121 and IEC60945 for transportation applications. The tBOX810-838-FL is powered by the Intel® Atom™ processors E3845 quad-core 1.91GHz and E3827 dual-core 1.75 GHz with onboard DDR3L memory up to 4GB. Measuring only 164 x 108 x 44 mm and 0.77kg, the mini fanless embedded system supports a wide operating temperature ranging from -40°C to +70°C and 9 ~ 36V wide DC input for wide range of harsh environmental conditions.
Additionally, the vehicle/railway/marine box PC has high integration ability with two full-size PCI Express Mini Card slots, one SIM card which makes it a multi-function device for transportation applications. The tBOX 810-838-FL is definitely the top choice for M2M intelligent system for railway, marine, and vehicle solutions.
Meer informatie
Art.nr.
tBOX810-838-FL
Fabrikant
Axiomtek
Land van herkomst
Taiwan
Documenten
Standard Color
Silver-Black
Construction
Aluminum extrusion and heavy-duty steel
CPU
Intel® Atom™ processor E3845 ([email protected] GHz)
Intel® Atom™ processor E3827 ([email protected] GHz)
System Memory
4 GB DDR3L-1333 onboard
Chipset
SoC integrated
BIOS
AMI
System I/O Outlet
Rear Side
1 x GbE LAN (M12 A-coded)
4 x isolated RS-422/485 (terminal)
1 x RS-232 (DB9)
1 x isolated DI/DO (6-in/2-out)
2 x audio (mic-in/line-out, screw type)
1 x HDMI
1 x VGA
1 x VDC power input (M12 A-coded)
4 x antenna opening
1 x fuse
Front Side
4 x USB 2.0
1 x audio (mic-in/line-out, screw type)
1 x reset switch
1 x remote power switch
1 x 2.5” SATA drive tray
1 x CFast
1 x GbE LAN (M12 A-coded)
4 x isolated RS-422/485 (terminal)
1 x RS-232 (DB9)
1 x isolated DI/DO (6-in/2-out)
2 x audio (mic-in/line-out, screw type)
1 x HDMI
1 x VGA
1 x VDC power input (M12 A-coded)
4 x antenna opening
1 x fuse
Front Side
4 x USB 2.0
1 x audio (mic-in/line-out, screw type)
1 x reset switch
1 x remote power switch
1 x 2.5” SATA drive tray
1 x CFast
Watchdog Timer
255 levels, 0 ~ 255 sec/min.
Expansion Interface
2 x full-size mini PCIe card slots, 1x supported mSATA
1 x SIM card socket
1 x SIM card socket
Storage
1 x 2.5” 9.5 mm SATA drive
1 x mSATA
1 x mSATA
System Indicator
1 x green LED indicator for system power
1 x green LED indicator for programmable #1
1 x green LED indicator for programmable #2
1 x yellow LED indicator for HDD active
1 x green LED indicator for LAN #1 active
1 x green LED indicator for LAN #2 active
1 x green LED indicator for programmable #1
1 x green LED indicator for programmable #2
1 x yellow LED indicator for HDD active
1 x green LED indicator for LAN #1 active
1 x green LED indicator for LAN #2 active
Power Supply
Power input : 9 ~ 36 V DC
Operating Temperature
-40°C ~ +70°C W/T SSD
-25°C ~ +55°C W/T HDD
-25°C ~ +55°C W/T HDD
Storage Temperature
-40°C ~ +80°C
Humidity
5% ~ 95%, non-condensing
Vibration Endurance
3 Grms w/ SSD (5-500Hz, X, Y, Z direction; random)
1 Grms w/ HDD (5-500Hz, X, Y, Z direction; random)
1 Grms w/ HDD (5-500Hz, X, Y, Z direction; random)
Grootte
163.8 mm (W) x 108 mm (D) x 44 mm (H)
Weight (net/gross)
0,77 Kg
Certification
CE (Class A), EN50155, EN50121, eMark, ISO7637, IEC60945 certificated
EOS Support
WES 8
WES 7
Linux
WES 7
Linux
Warranty
2 Years
