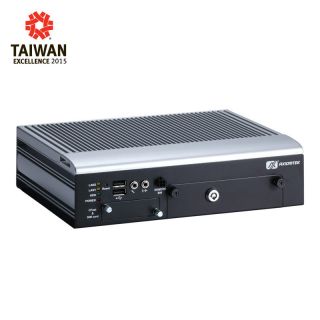

Axiomtek tBOX323-835-FL

Levertijd: 2-4 Weken

Kenmerken

Fanless Embedded System with Intel® Atom™ Processor E3845 Quad Core™ (1.91 GHz) Railway PC

● EN50155, EN50121 certified, EN45545-2 complied
● Fanless operating temperature range of -40°C ~ +70°C(EN50155 class TX)
● Intel® Atom™ Bay Trail-I E3845 1.91GHz
● High performance DDR3L-1333 4 GB memory
● Isolated RS-232/422/485 and DIO
● Lockable I/O interface and M12 LAN, power connector
● Supports USB 2.0 and SATA2
● Instant fuse repair design
● Suspension 2.5” SATA HDD and one CFast™
● Internal PCI Express Mini Card slot and SIM socket


Details

The tBOX323-835-FL is designed for in-train applications. Integrated with onboard quad-core Intel® Atom™ E3845 processor and 4 GB low-powered DDR3L memory, the fanless railway embedded system boosts its computing performance and specializes its I/O design with five isolated COM ports, two M12-type LAN connectors, USB 2.0 ports, and one isolated digital I/O. The railway PC also provides VGA and HDMI outputs for in-train surveillance. The tBOX323-835-FL is an ideal all-in-one IoT (Internet of Things) solution for various applications, including railway multi-functions of gateway, controller, digital signage management and surveillance. Certificated with EN50155 and EN50121 for rolling stock and complied with EN45545-2 for fire resistance, the rugged system operates reliably in a -40ºC to 70ºC operating temperature range (EN50155 Class TX) and in a high vibration environment.

Specificaties

Artikelnummer tBOX323-835-FL
Fabrikant Axiomtek
Standard Color Silver-Black
Construction Aluminum extrusion and heavy-duty steel
CPU Intel® Atom™ processor E3845 (4C@1.91GHz)
System Memory 4 GB DDR3L-1333
Chipset SoC integrated
BIOS AMI
System I/O Outlet

Rear Side
2 x GbE LAN (M12 A-coded)
4 x isolated RS-422/485 (terminal)
1 x RS-232 (DB9)
1 x isolated DI/DO (6-in/2-out)
2 x audio (mic-in/line-out, screw type)
1 x HDMI
1 x VGA
1 x VDC power input (M12 A-coded)
4 x antenna opening
1 x fuse
Front Side
2 x USB 2.0
1 x audio (mic-in/line-out, screw type)
1 x reset switch
1 x remote power switch
1 x 2.5” SATA drive tray
1 x CFast™ slot + 2 x SIM card sockets

Watchdog Timer 255 levels, 0 ~ 255 sec/min.
Expansion Interface 3 x PCI Express Mini Card with 2 x SIM card slots (two front accessible)
One PCIe mini card support mSATA
Storage 1 x 2.5” SATA HDD(Suspension designed, HDD height support 7/9.5/12.5/15mm)
1 x CFast™ (front accessible)
System Indicator

1 x green LED for HDD active
1 x yellow LED for LAN1 active
1 x yellow LED for LAN2 active
1 x red LED for Power

Power Supply Power input : 12 ~ 32 V dc (typical 24V dc)
Operating Temperature

-40°C ~ +70°C  W/T SSD
-25°C ~ +55°C  W/T HDD

Storage Temperature -40°C ~ +80°C
Humidity 5% ~ 95%, non-condensing
Vibration Endurance 3 Grms with SSD & CFast™ (5-500Hz, X, Y, Z direction; Random) (IEC60068-2-34)
2 Grms with HDD (5-500Hz, X, Y, Z direction; Random) (IEC60068-2-34) , MIL-STD-810G , Method 514.6, Category 4 & 11 & 20
Shock
50G with SSD/CFast™ (operating), MIL-STD-810G Method 516.6, procedure I, peak 20g 11ms
Formaat 244 mm (W) x 180.5 mm (D) x 65.1 mm (H)
Weight (net/gross) 3 kg /3.8 kg
Certification CE, EN50155, EN50121, EN45545-2 compliance
EOS Support WES 8
WES 7
Compac2013
Linux
Warranty 2 Years
